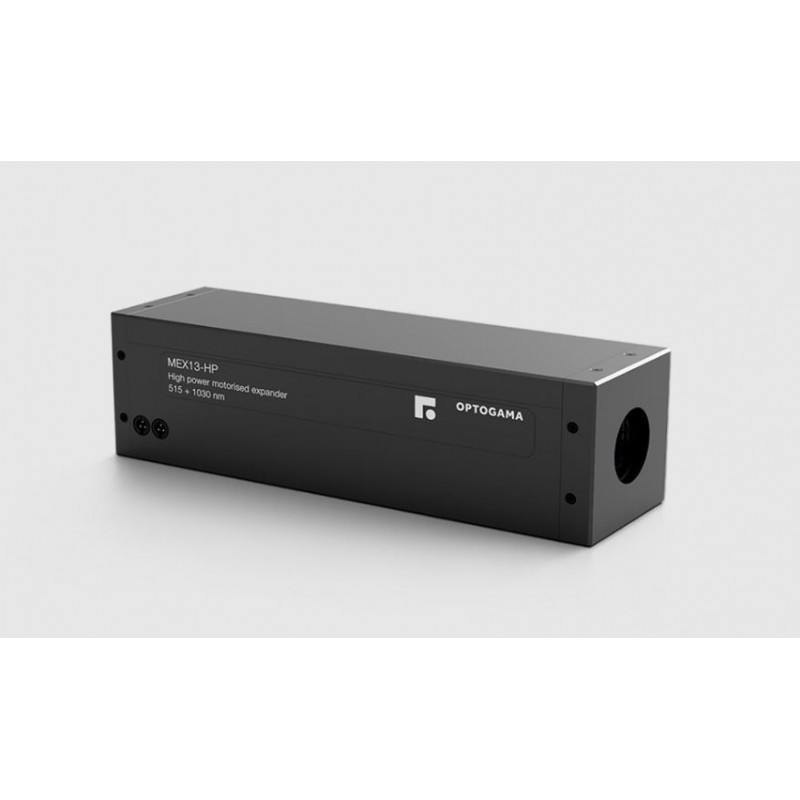

High Power Motorized Beam Expander

-->

Reference number: OGA-MEX13-HP-9238

High-power motorized beam expander OGA-MEX-HP

Expansion

Design wavelength in nm

Expansion

Design wavelength in nm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13HP.step

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 - 532 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13HP.step

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13HP.step

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 343 - 355 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 + 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13HP.step

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 + 515 - 532 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13HP.step

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 - 532 + 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13HP.step

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 - 532 + 343 - 355 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm

Downloads

CE_OGA_MEX13_HP.pdf

DOWNLOAD

OGA_MEX13_HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 95 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 5.0x
Design Wavelength: 1030 - 1064 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 24 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 3.3 mm (5x)
Dimensions (H x W x L): 65 x 65 x 250 mm

Downloads

CE_OGA_MEX15_HP.pdf

DOWNLOAD

OGA_MEX15HP.step

DOWNLOAD

OGA_MEX15HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 95 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 5.0x
Design Wavelength: 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 24 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 3.3 mm (5x)
Dimensions (H x W x L): 65 x 65 x 250 mm

Downloads

CE_OGA_MEX15_HP.pdf

DOWNLOAD

OGA_MEX15HP.step

DOWNLOAD

OGA_MEX15HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 95 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 5.0x
Design Wavelength: 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 24 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 3.3 mm (5x)
Dimensions (H x W x L): 65 x 65 x 250 mm

Downloads

CE_OGA_MEX15_HP.pdf

DOWNLOAD

OGA_MEX15HP.step

DOWNLOAD

OGA_MEX15HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 95 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 5.0x
Design Wavelength: 1030 - 1064 + 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 24 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 3.3 mm (5x)
Dimensions (H x W x L): 65 x 65 x 250 mm

Downloads

CE_OGA_MEX15_HP.pdf

DOWNLOAD

OGA_MEX15HP.step

DOWNLOAD

OGA_MEX15HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 95 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 5.0x
Design Wavelength: 515 - 532 + 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 24 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 3.3 mm (5x)
Dimensions (H x W x L): 65 x 65 x 250 mm

Downloads

CE_OGA_MEX15_HP.pdf

DOWNLOAD

OGA_MEX15HP.step

DOWNLOAD

OGA_MEX15HP_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

High-power motorized beam expander OGA-MEX-HP

Main features:

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
Highest beam pointing stability (< 0.2 mrad)
Fused silica optical elements
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
High power laser beam management
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
MAX Laser Power: Up to 200 W @1030 nm, 500 fs, 1 MHz
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 28 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 60 x 60 x 207 mm
