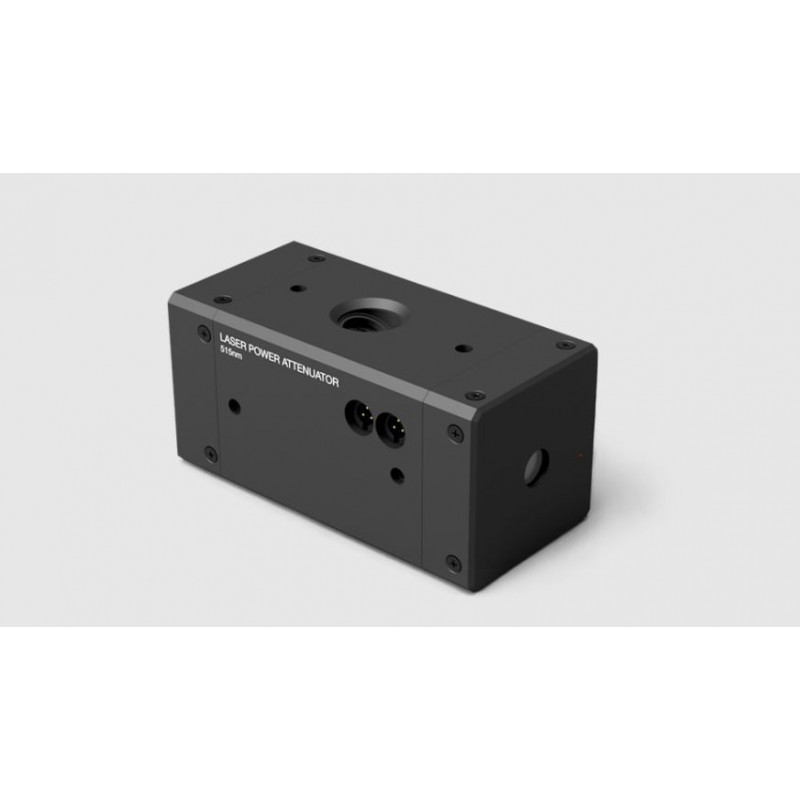

Advanced Laser Power Attenuator

-->

Reference number: OGA-LPA-A-5944

Advanced laser power attenuator OGA-LPA-A

Design wavelength in nm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Main features:

Industrial robust mechanical design
Large clear aperture
Motorized power attenuation control
Fast adjustment < 0.5 sec
Two mounting options for minimal 18 mm or 40 mm beam height

Application examples:

Laser machining
Research

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 5 J/cm² (10 ns @532 nm)
Design Wavelength: 532 nm
Attenuation Range: 0.1 - 98 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 5 J/cm² (10 ns @532 nm)
Design Wavelength: 515 nm
Attenuation Range: 0.1 - 98 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 10 J/cm² (10 ns @1064 nm)
Design Wavelength: 1064 nm
Attenuation Range: 0.1 - 98 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 10 J/cm² (10 ns @1064 nm)
Design Wavelength: 1030 nm
Attenuation Range: 0.1 - 98 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 3 J/cm² (10 ns @355 nm)
Design Wavelength: 343 nm
Attenuation Range: 0.2 - 96 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 2 J/cm² (10 ns @266 nm)
Design Wavelength: 266 nm
Attenuation Range: 0.5 - 95 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 2 J/cm² (10 ns @266 nm)
Design Wavelength: 257 nm
Attenuation Range: 0.5 - 95 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf

Advanced laser power attenuator OGA-LPA-A

Main features:

Zero beam offset
High Resolution < 0.1 %
Suitable for accurate power tuning
Integrated controller and robust interface
Integrable with OGA-MEX product Line

Application examples:

Precise laser micromachining
Laser power stabilization
Research

Specifications:

Input and Ouput Clear Aperture: 9 mm
Controller: Integrated
Control Interface: USB or RS232
LIDT: 3 J/cm² (10 ns @355 nm)
Design Wavelength: 355 nm
Attenuation Range: 0.2 - 96 %
Dimensions (H x W x L): 45 x 45 x 91 mm

Downloads

CE_OGA_LPA_A.pdf

OGA_LPA_A.step

OGA_LPA_A_drawing.pdf

OGA_LPA_A_manual.pdf

Katalog_OGA_2020___Laser_2000.pdf
