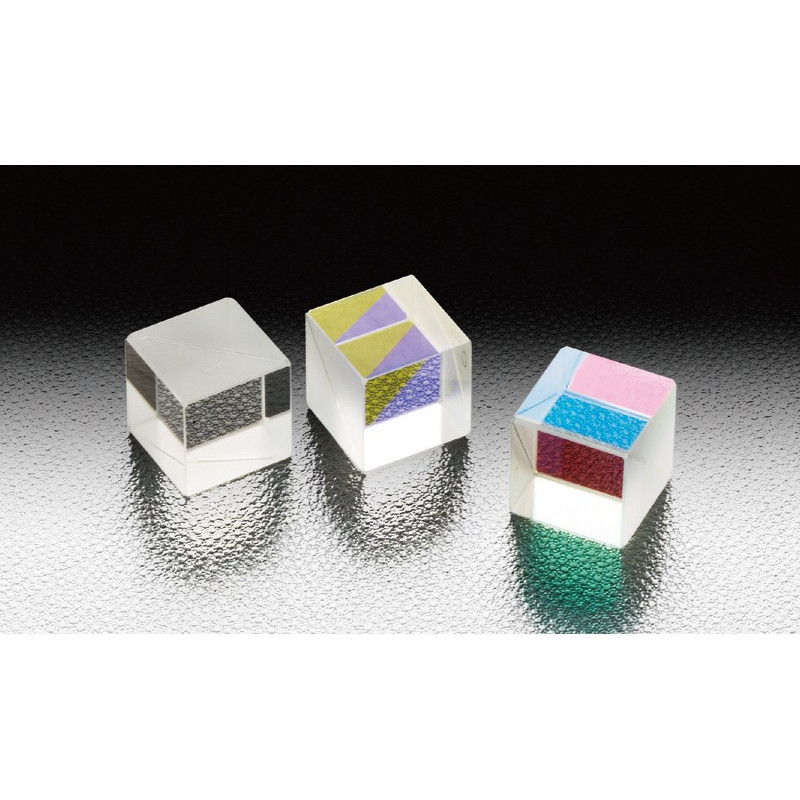

Non-polarizing Cube Half Mirrors

search
-->

Reference number: OSE-NPCH-10-2660

Half mirrors have a uniform 1:1 ratio of reflection and transmission for both linearly polarized light and normal light source.

Wavelength Range in nm
A - B - C in mm
Wavelength Range in nm
A - B - C in mm
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

alt

Need more info?
Contact our expert.

Our Team

Description

  • Surface flatness of substrate: λ/4
  • Beam Deviation: 5
  • Coating: Hypotenuse surface ; Dielectric multilayer coating Four surfaces ; Multilayer antireflection coating
  • Incident angle [°]: 0
  • Divergence ratio (reflectance : transmittance): 1:1
  • Laser Damage Threshold [J/cm2] : 0,3
  • Surface Quality (Scratch-Dig): 20-10
  • Clear aperture: Circle that inscribed in a square of 85% of the dimensions (Circle inscribed in a square of 80% of the dimensions , in case of 5 and 7mm) Circle that inscribed in a square of 85% of the dimensions (Circle inscribed in a square of 80% of the dimensions , in case of 5 and 7mm) Circle that inscribed in a square of 85% of the dimensions (Circle inscribed in a square of 80% of the dimensions , in case of 5 and 7mm)
