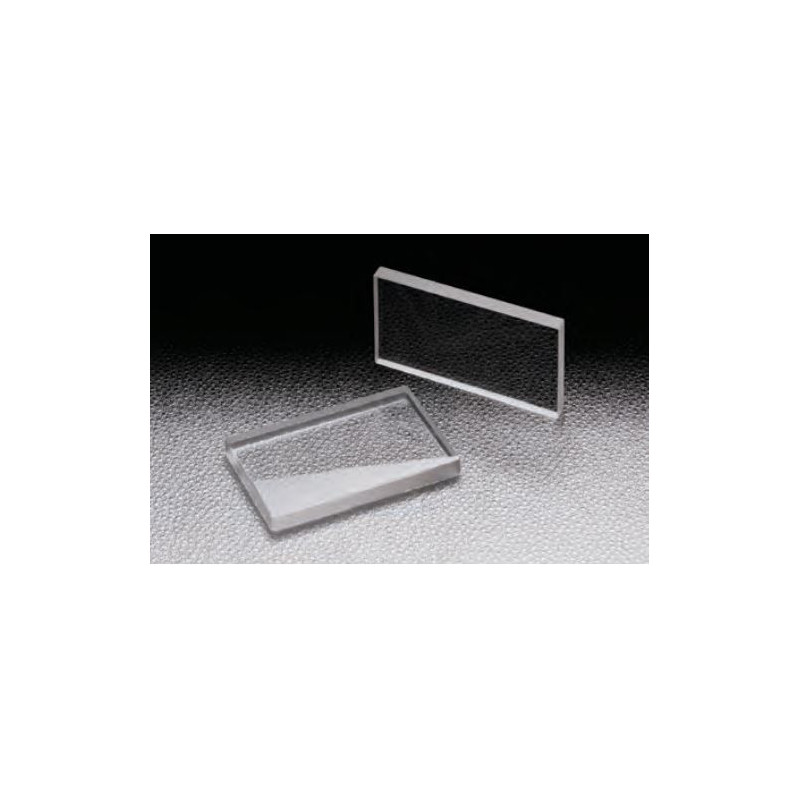

Plano Convex Cylindrical Lens, Uncoated, BK7

-->

Reference number: OSE-CLB-1010-15P

The cylindrical plano-convex lens has a convex curvature in vertical direction and no curvature in horizontal direction. They are often used to condense a laser beam into a thin line.

Focal length in mm

Diameter / AxB in mm

Focal length in mm

Diameter / AxB in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20
Shape: rectangular
Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 15
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 12.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1010-15P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1010-15N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 20
Edge thickness te [mm]: 1.7
Center thickness tc [mm]: 3
Back focal length fb [mm]: 18

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1010-20P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1010-20N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 23

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1010-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1010-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 28

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1010-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1010-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: 38

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1010-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1010-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 15
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 12.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1020-15P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-15N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 20
Edge thickness te [mm]: 1.7
Center thickness tc [mm]: 3
Back focal length fb [mm]: 18

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1020-20P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-20N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 23

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1020-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 28

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1020-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: 38

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1020-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 15
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 12.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1070-15P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 20
Edge thickness te [mm]: 1.7
Center thickness tc [mm]: 3
Back focal length fb [mm]: 18

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1070-20P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 23

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1070-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: 28

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1070-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: 38

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1070-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 20
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 16.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1515-20P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1515-20N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 5
Back focal length fb [mm]: 21.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1515-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1515-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 4
Back focal length fb [mm]: 27.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1515-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1515-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 37.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1515-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1515-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 20
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 16.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1525-20P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-20N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 5
Back focal length fb [mm]: 21.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1525-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 4
Back focal length fb [mm]: 27.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1525-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 37.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1525-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 20
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 16.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1570-20P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 5
Back focal length fb [mm]: 21.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1570-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 4
Back focal length fb [mm]: 27.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1570-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 37.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-1570-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 7
Back focal length fb [mm]: 20.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 6
Back focal length fb [mm]: 26.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 36.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 47.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-50N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 57.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-60N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 67.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-70N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 77.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 97.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 127.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 147.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 4
Back focal length fb [mm]: 197.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 247.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 3.7
Center thickness tc [mm]: 4
Back focal length fb [mm]: 297.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 397.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 497.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 697.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-60N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 997.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2020-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 7
Back focal length fb [mm]: 20.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-250N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 6
Back focal length fb [mm]: 26.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 36.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 47.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 57.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 67.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 77.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 97.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-100N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 127.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-130N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 147.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-150N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 4
Back focal length fb [mm]: 197.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-200N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 247.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-250N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 3.7
Center thickness tc [mm]: 4
Back focal length fb [mm]: 297.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 397.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 497.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 697.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 997.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2030-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2020-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 7
Back focal length fb [mm]: 20.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-25P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 6
Back focal length fb [mm]: 26.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 36.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 47.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 57.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 67.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 77.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 97.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 127.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 147.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 4
Back focal length fb [mm]: 197.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 247.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 3.7
Center thickness tc [mm]: 4
Back focal length fb [mm]: 297.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 397.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 497.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 697.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 997.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2040-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2030-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 97.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 127.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-130P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 147.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-150P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 4
Back focal length fb [mm]: 197.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 247.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 3.7
Center thickness tc [mm]: 4
Back focal length fb [mm]: 297.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 397.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 497.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 697.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 4
Back focal length fb [mm]: 997.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2050-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2040-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 25
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 7
Back focal length fb [mm]: 20.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-25P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-25P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 30
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 6
Back focal length fb [mm]: 26.1

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-30P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-30P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 40
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 36.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-40P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-40P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2
Center thickness tc [mm]: 4
Back focal length fb [mm]: 47.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-50P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 57.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 4
Back focal length fb [mm]: 67.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 4
Back focal length fb [mm]: 77.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 97.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-2070-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2050-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 4
Back focal length fb [mm]: 127.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-20100-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 4
Back focal length fb [mm]: 147.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-20100-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 4
Back focal length fb [mm]: 197.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-20100-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 3.7
Center thickness tc [mm]: 4
Back focal length fb [mm]: 297.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-20100-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-1525-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 7
Back focal length fb [mm]: 45.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-3030-50P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 6
Back focal length fb [mm]: 56

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-3030-60P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 66.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 5
Back focal length fb [mm]: 76.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 96.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 126.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 146.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 5
Back focal length fb [mm]: 196.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 246.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 4.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 296.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 4.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 396.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 5
Back focal length fb [mm]: 496.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 4.7
Center thickness tc [mm]: 5
Back focal length fb [mm]: 696.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 4.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 996.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3030-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 7
Back focal length fb [mm]: 45.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 6
Back focal length fb [mm]: 56

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 66.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 5
Back focal length fb [mm]: 76.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 96.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 126.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 146.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 5
Back focal length fb [mm]: 196.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 246.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 4.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 296.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 4.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 396.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 5
Back focal length fb [mm]: 496.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 4.7
Center thickness tc [mm]: 5
Back focal length fb [mm]: 696.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 4.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 996.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3040-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 7
Back focal length fb [mm]: 45.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 6
Back focal length fb [mm]: 56

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 66.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 5
Back focal length fb [mm]: 76.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 96.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 126.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 146.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 5
Back focal length fb [mm]: 196.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 250
Edge thickness te [mm]: 4
Center thickness tc [mm]: 5
Back focal length fb [mm]: 246.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-250P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 300
Edge thickness te [mm]: 4.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 296.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-300P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 400
Edge thickness te [mm]: 4.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 396.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-400P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 500
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 5
Back focal length fb [mm]: 496.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-500P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 700
Edge thickness te [mm]: 4.7
Center thickness tc [mm]: 5
Back focal length fb [mm]: 696.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-700P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 1000
Edge thickness te [mm]: 4.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 996.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3050-1000P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 50
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 7
Back focal length fb [mm]: 45.4

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3070-50P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 60
Edge thickness te [mm]: 2.1
Center thickness tc [mm]: 6
Back focal length fb [mm]: 56

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3070-60P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 70
Edge thickness te [mm]: 1.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 66.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3070-70P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 80
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 5
Back focal length fb [mm]: 76.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3070-80P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 100
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 5
Back focal length fb [mm]: 96.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-3070-100P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-30100-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 130
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 5
Back focal length fb [mm]: 126.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-30100-130P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 150
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 5
Back focal length fb [mm]: 146.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-30100-150P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Convex Cylindrical Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: 4
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: rectangular
Diameter D [mm]: NV
Focal length f [mm]: 200
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 5
Back focal length fb [mm]: 196.7

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-CLB-30100-200P_STP.zip

OSE-CLB-P_CLSQ-P.pdf

OSE-CLB-2070-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls
