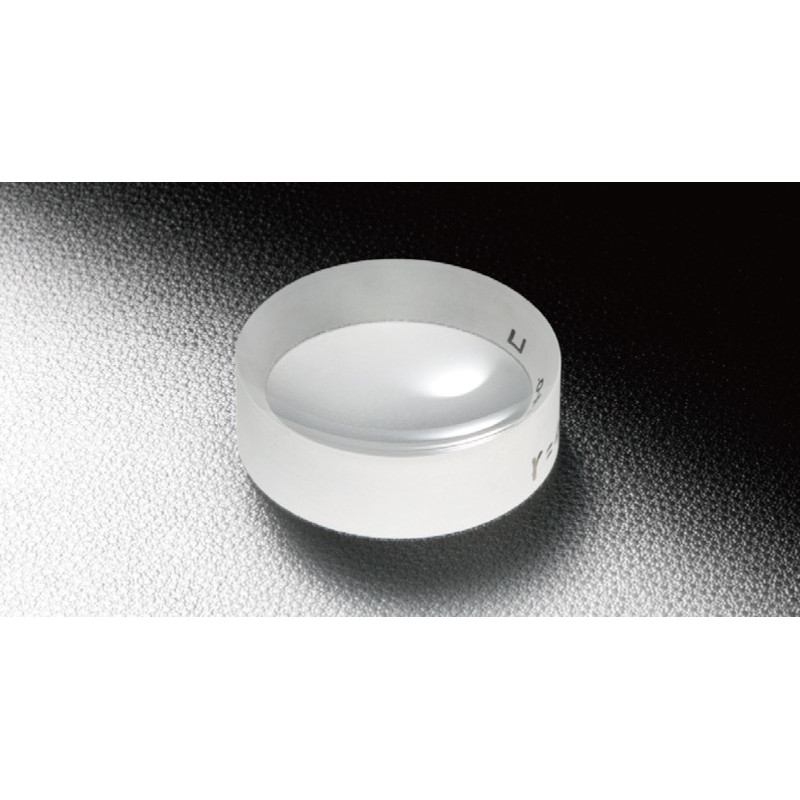

Aluminium Concave Mirror, Al, BK7

-->

Reference number: OSE-TCAN-10C05-10

These substrates are mainly used as the primary mirror in a reflecting telescope or as reflection mirror of a collimating optical system light-source.

Diameter in mm

Focal length in mm

Diameter in mm

Focal length in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Pre-coated aluminium concave mirrors. Without protective layer: Al

Type: Aluminium Concave Mirrors
Radius Tolerance: ±2%
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Rear Surface: Ground

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.7
Radius of curvature r [mm]: 10
Focal length f [mm]: 5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.1
Radius of curvature r [mm]: 15
Focal length f [mm]: 7.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.4
Radius of curvature r [mm]: 20
Focal length f [mm]: 10
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.5
Radius of curvature r [mm]: 25
Focal length f [mm]: 12.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 30
Focal length f [mm]: 15
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 120
Focal length f [mm]: 60
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 4000
Focal length f [mm]: 2000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 600
Focal length f [mm]: 300
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 700
Focal length f [mm]: 350
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 800
Focal length f [mm]: 400
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2000
Focal length f [mm]: 1000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2500
Focal length f [mm]: 1250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 3000
Focal length f [mm]: 1500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 5000
Focal length f [mm]: 2500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø10
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 10000
Focal length f [mm]: 5000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 3.6
Radius of curvature r [mm]: 10
Focal length f [mm]: 5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 15
Focal length f [mm]: 7.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.5
Radius of curvature r [mm]: 20
Focal length f [mm]: 10
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.8
Radius of curvature r [mm]: 25
Focal length f [mm]: 12.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4
Radius of curvature r [mm]: 30
Focal length f [mm]: 15
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.3
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.4
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.5
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 120
Focal length f [mm]: 60
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 400
Focal length f [mm]: 200
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 600
Focal length f [mm]: 300
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 700
Focal length f [mm]: 350
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 800
Focal length f [mm]: 400
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2000
Focal length f [mm]: 1000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2500
Focal length f [mm]: 1250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 3000
Focal length f [mm]: 1500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 4000
Focal length f [mm]: 2000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 5000
Focal length f [mm]: 2500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 10000
Focal length f [mm]: 5000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø15
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 30000
Focal length f [mm]: 15000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 4.2
Radius of curvature r [mm]: 15
Focal length f [mm]: 7.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 5.3
Radius of curvature r [mm]: 20
Focal length f [mm]: 10
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 5.9
Radius of curvature r [mm]: 25
Focal length f [mm]: 12.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.3
Radius of curvature r [mm]: 30
Focal length f [mm]: 15
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.7
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.2
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.3
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.4
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.4
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.5
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 120
Focal length f [mm]: 60
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 400
Focal length f [mm]: 200
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 600
Focal length f [mm]: 300
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 700
Focal length f [mm]: 350
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 800
Focal length f [mm]: 400
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2000
Focal length f [mm]: 1000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2500
Focal length f [mm]: 1250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 3000
Focal length f [mm]: 1500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 4000
Focal length f [mm]: 2000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 5000
Focal length f [mm]: 2500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 10000
Focal length f [mm]: 5000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø20
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 30000
Focal length f [mm]: 15000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 3.3
Radius of curvature r [mm]: 15
Focal length f [mm]: 7.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 2.6
Radius of curvature r [mm]: 20
Focal length f [mm]: 10
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 3.7
Radius of curvature r [mm]: 25
Focal length f [mm]: 12.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 4.3
Radius of curvature r [mm]: 30
Focal length f [mm]: 15
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.4
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.7
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 3.9
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.1
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.2
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.3
Radius of curvature r [mm]: 120
Focal length f [mm]: 60
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.5
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 400
Focal length f [mm]: 200
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 600
Focal length f [mm]: 300
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 700
Focal length f [mm]: 350
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 800
Focal length f [mm]: 400
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 2000
Focal length f [mm]: 1000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2500
Focal length f [mm]: 1250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 3000
Focal length f [mm]: 1500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 4000
Focal length f [mm]: 2000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 5000
Focal length f [mm]: 2500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 10000
Focal length f [mm]: 5000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 30000
Focal length f [mm]: 15000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25.4
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.4
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25.4
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.2
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25.4
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25.4
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø25.4
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 3.2
Radius of curvature r [mm]: 20
Focal length f [mm]: 10
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 25
Focal length f [mm]: 12.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 3
Radius of curvature r [mm]: 30
Focal length f [mm]: 15
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 4.1
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.1
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.4
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.6
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.7
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.9
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.1
Radius of curvature r [mm]: 120
Focal length f [mm]: 60
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.2
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.4
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.5
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.6
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.7
Radius of curvature r [mm]: 400
Focal length f [mm]: 200
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 600
Focal length f [mm]: 300
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.8
Radius of curvature r [mm]: 700
Focal length f [mm]: 350
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 800
Focal length f [mm]: 400
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 4.9
Radius of curvature r [mm]: 2000
Focal length f [mm]: 1000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 2500
Focal length f [mm]: 1250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 3000
Focal length f [mm]: 1500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 3500
Focal length f [mm]: 1750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 4000
Focal length f [mm]: 2000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 5000
Focal length f [mm]: 2500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 10000
Focal length f [mm]: 5000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø30
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 5
Thickness of the center tc [mm]: 5
Radius of curvature r [mm]: 30000
Focal length f [mm]: 15000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 13
Thickness of the center tc [mm]: 3
Radius of curvature r [mm]: 25
Focal length f [mm]: 12.5
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 13
Thickness of the center tc [mm]: 5.4
Radius of curvature r [mm]: 30
Focal length f [mm]: 15
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 13
Thickness of the center tc [mm]: 7.6
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 13
Thickness of the center tc [mm]: 8.8
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 6.6
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 7.1
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 5.5
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 5.7
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 6
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 5.7
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 6
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 7
Thickness of the center tc [mm]: 6.2
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 6
Thickness of the center tc [mm]: 5.3
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 6
Thickness of the center tc [mm]: 5.5
Radius of curvature r [mm]: 400
Focal length f [mm]: 200
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 6
Thickness of the center tc [mm]: 5.6
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 6
Thickness of the center tc [mm]: 5.8
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø40
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 6
Thickness of the center tc [mm]: 5.9
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 16
Thickness of the center tc [mm]: 7.2
Radius of curvature r [mm]: 40
Focal length f [mm]: 20
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 13
Thickness of the center tc [mm]: 6.3
Radius of curvature r [mm]: 50
Focal length f [mm]: 25
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 4.5
Radius of curvature r [mm]: 60
Focal length f [mm]: 30
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 5.4
Radius of curvature r [mm]: 70
Focal length f [mm]: 35
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 6
Radius of curvature r [mm]: 80
Focal length f [mm]: 40
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 6.5
Radius of curvature r [mm]: 90
Focal length f [mm]: 45
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 10
Thickness of the center tc [mm]: 6.8
Radius of curvature r [mm]: 100
Focal length f [mm]: 50
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 5.4
Radius of curvature r [mm]: 120
Focal length f [mm]: 60
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 5.9
Radius of curvature r [mm]: 150
Focal length f [mm]: 75
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 6.4
Radius of curvature r [mm]: 200
Focal length f [mm]: 100
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 6.7
Radius of curvature r [mm]: 250
Focal length f [mm]: 125
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7
Radius of curvature r [mm]: 300
Focal length f [mm]: 150
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.2
Radius of curvature r [mm]: 400
Focal length f [mm]: 200
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.4
Radius of curvature r [mm]: 500
Focal length f [mm]: 250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.5
Radius of curvature r [mm]: 600
Focal length f [mm]: 300
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.6
Radius of curvature r [mm]: 700
Focal length f [mm]: 350
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.6
Radius of curvature r [mm]: 800
Focal length f [mm]: 400
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.7
Radius of curvature r [mm]: 1000
Focal length f [mm]: 500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.8
Radius of curvature r [mm]: 1500
Focal length f [mm]: 750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.8
Radius of curvature r [mm]: 2000
Focal length f [mm]: 1000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.9
Radius of curvature r [mm]: 2500
Focal length f [mm]: 1250
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.9
Radius of curvature r [mm]: 3000
Focal length f [mm]: 1500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.9
Radius of curvature r [mm]: 3500
Focal length f [mm]: 1750
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.9
Radius of curvature r [mm]: 4000
Focal length f [mm]: 2000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 7.9
Radius of curvature r [mm]: 5000
Focal length f [mm]: 2500
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 8
Radius of curvature r [mm]: 10000
Focal length f [mm]: 5000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip

Type: Aluminium Concave Mirror Substrates
Diameter ØD [mm]: Ø50
Radius Tolerance: ±2%
Thickness of the edge te [mm]: 8
Thickness of the center tc [mm]: 8
Radius of curvature r [mm]: 30000
Focal length f [mm]: 15000
Material: BK7
Spherical accuracy: λ/2
Clear Aperture: 85% of actual aperture
Coating: Al
Surface Quality (Scratch-Dig): 40-20
Surface Quality (Scratch-Dig) With Coating: 40-20
Rear Surface: Ground

Downloads

OSE-TCBS_TCA_TCAN.pdf

Opt_Substratesundamp_Windows_.zip
