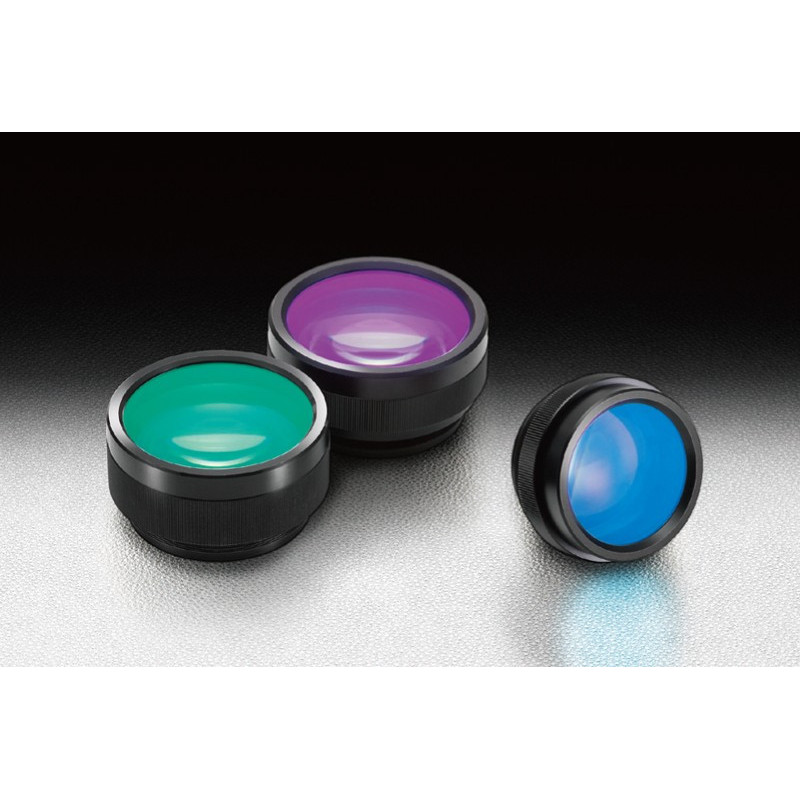

F-Theta Lenses for YAG

-->

Reference number: OSE-f-Theta-100-532L

F-Theta Lenses are used for laser marking, bar code reader, laser micromachining and other laser applications.

Design wavelength in nm

Focal length in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Entrance pupil diameter [mm]: Ø12
Focal length f [mm]: 100.2
Working distance (WD) [mm]: 114.7
Design wavelength [nm]: 532
Scanning angle [°]: ±22,9
Scanning range [mm]: Ø80
Transmittance [%]: >95
Telecentric: o
A [mm]: 53.3
B [mm]: 17.8
C [mm]: 22.5
D [mm]: 22.8
E [mm]: 8
F [mm]: Ø89
ØG [mm]: Ø80
ØH [mm]: Ø72
I: Ø60
ØJ [mm]: 48.6
K [mm]: Ø83
Screw: M85 P1

Downloads

OSE-ftheta-100-532L_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø12
Focal length f [mm]: 99.93
Working distance (WD) [mm]: 109.6
Design wavelength [nm]: 1064
Scanning angle [°]: ±22,9
Scanning range [mm]: Ø80
Transmittance [%]: >95
Telecentric: o
A [mm]: 53.3
B [mm]: 17
C [mm]: 20
D [mm]: 25.3
E [mm]: 8
F [mm]: Ø87
ØG [mm]: Ø80
ØH [mm]: Ø69
I: Ø57
ØJ [mm]: 50.3
K [mm]: Ø83
Screw: M85 P1

Downloads

OSE-ftheta-100-1064L_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø15
Focal length f [mm]: 152.1
Working distance (WD) [mm]: 168.6
Design wavelength [nm]: 1064
Scanning angle [°]: ±24,0
Scanning range [mm]: Ø127,4
Transmittance [%]: >95
Telecentric: o
A [mm]: 63
B [mm]: 19.8
C [mm]: 26.8
D [mm]: 28
E [mm]: 8.2
F [mm]: Ø87
ØG [mm]: Ø80
ØH [mm]: Ø74,5
I: Ø64
ØJ [mm]: 56
K [mm]: Ø86
Screw: M85 P1

Downloads

OSE-ftheta-150-1064B_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø12
Focal length f [mm]: 220
Working distance (WD) [mm]: 254.2
Design wavelength [nm]: 1064
Scanning angle [°]: ±24,0
Scanning range [mm]: Ø184
Transmittance [%]: >95
Telecentric: o
A [mm]: 59.8
B [mm]: 21.1
C [mm]: 32.1
D [mm]: 19.7
E [mm]: 8
F [mm]: Ø97
ØG [mm]: Ø80
ØH [mm]: -
I: Ø68
ØJ [mm]: 48.8
K [mm]: Ø97
Screw: M85 P1

Downloads

OSE-ftheta-220-1064L_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip

Entrance pupil diameter [mm]: Ø15
Focal length f [mm]: 273
Working distance (WD) [mm]: 318.9
Design wavelength [nm]: 1064
Scanning angle [°]: ±24,13
Scanning range [mm]: Ø230
Transmittance [%]: >95
Telecentric: o
A [mm]: 59.7
B [mm]: 33.5
C [mm]: 26
D [mm]: 24.7
E [mm]: 9
F [mm]: Ø106
ØG [mm]: Ø74
ØH [mm]: -
I: Ø64
ØJ [mm]: 67.2
K [mm]: Ø106
Screw: M85 P1

Downloads

OSE-ftheta-270-1064_STP.zip

OSE-f-theta.pdf

Opt(ME-optics).zip
