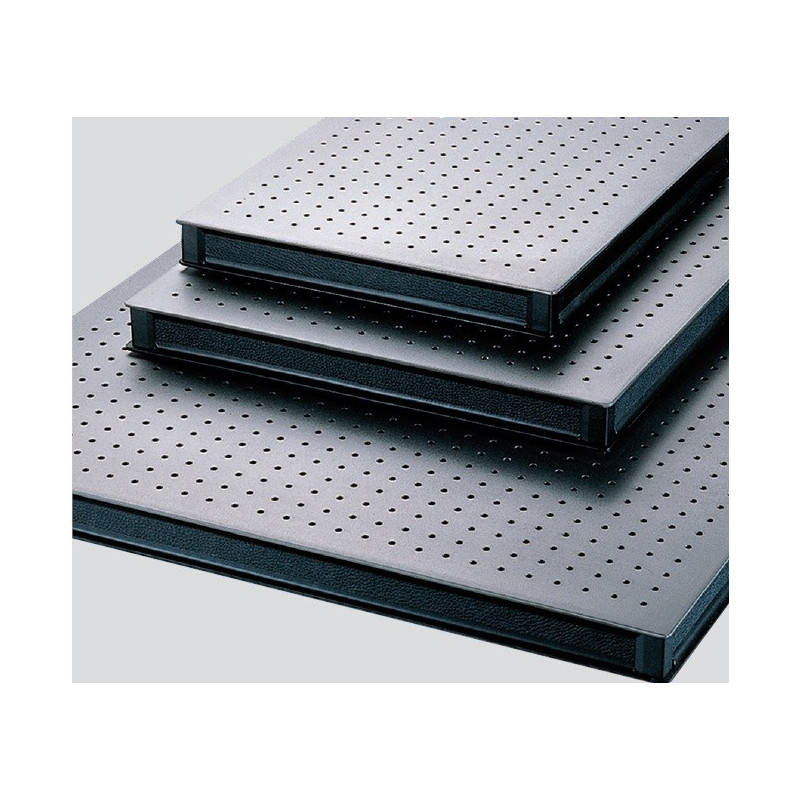

Tabletop Optical Breadbord

-->

Reference number: OSE-OSDVIO-B-0504M-50t

Top plates are made of stainless steel (SUS430), base plates are made of hot rolled steel (SPHC).

Dimensions in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 500x400
T [mm] : 50
Weight [kg]: 17

Downloads

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 600x500
T [mm] : 50
Weight [kg]: 26

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 600x600
T [mm] : 50
Weight [kg]: 31

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 750x750
T [mm] : 50
Weight [kg]: 49

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 800x600
T [mm] : 50
Weight [kg]: 42

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x600
T [mm] : 50
Weight [kg]: 47

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x750
T [mm] : 50
Weight [kg]: 59

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x900
T [mm] : 50
Weight [kg]: 70

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x600
T [mm] : 50
Weight [kg]: 52

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x750
T [mm] : 50
Weight [kg]: 65

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x900
T [mm] : 50
Weight [kg]: 78

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x1,000
T [mm] : 50
Weight [kg]: 87

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x600
T [mm] : 50
Weight [kg]: 63

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x750
T [mm] : 50
Weight [kg]: 78

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x900
T [mm] : 50
Weight [kg]: 94

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x1,000
T [mm] : 50
Weight [kg]: 104

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x1,200
T [mm] : 50
Weight [kg]: 125

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x600
T [mm] : 50
Weight [kg]: 78

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x750
T [mm] : 50
Weight [kg]: 98

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x900
T [mm] : 50
Weight [kg]: 117

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,000
T [mm] : 50
Weight [kg]: 131

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,200
T [mm] : 50
Weight [kg]: 157

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x600
T [mm] : 50
Weight [kg]: 94

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x750
T [mm] : 50
Weight [kg]: 117

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x900
T [mm] : 50
Weight [kg]: 141

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x1,200
T [mm] : 50
Weight [kg]: 188

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,000
T [mm] : 50
Weight [kg]: 174

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,200
T [mm] : 50
Weight [kg]: 209
