Plate Polarizing Beamsplitters

-->

Reference number: OSE-PBS-20C03-10-266

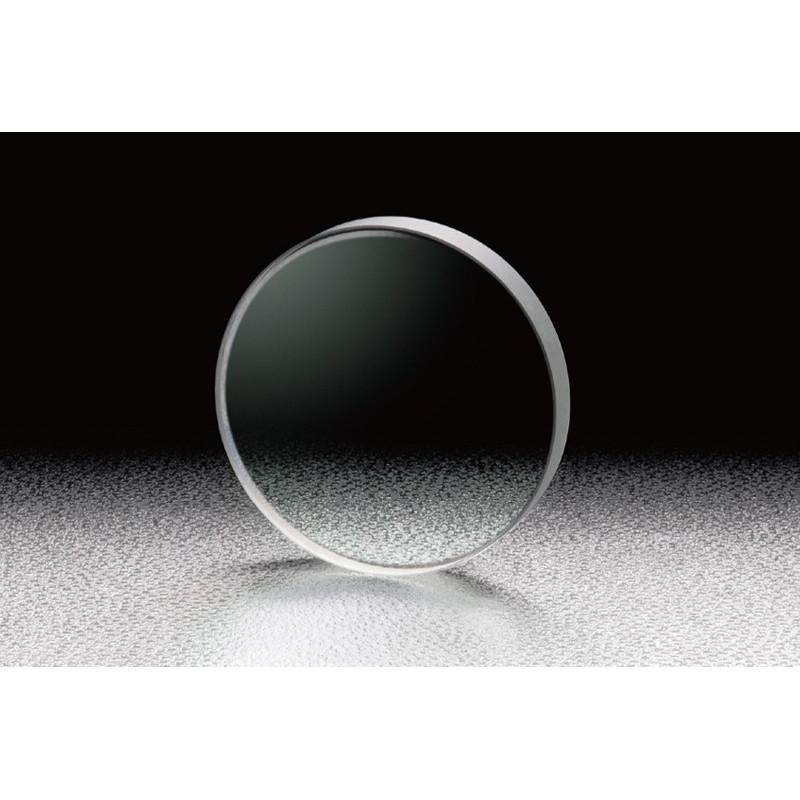

Polarizing plate beamsplitters are plates that have a polarizing coating. These transmit p-polarization and reflect s-polarization because the incoming monochromatic beam is at the Brewster angle.

Wavelength Range in nm

Diameter in mm

A-B-C in mm (400 - 700 nm)

Wavelength Range in nm

Diameter in mm

A-B-C in mm (400 - 700 nm)

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Wavelength Range [nm]: 266
Diameter D [mm]: 20
Maximum diameter of transmitted beam [mm]: 10
Material: Synthetic fused silica
Incident angle [ ° ]: 56.3
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 2
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 266
Diameter D [mm]: 25.4
Maximum diameter of transmitted beam [mm]: 12.7
Material: Synthetic fused silica
Incident angle [ ° ]: 56.3
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 2
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 266
Diameter D [mm]: 30
Maximum diameter of transmitted beam [mm]: 15
Material: Synthetic fused silica
Incident angle [ ° ]: 56.3
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 2
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 355
Diameter D [mm]: 20
Maximum diameter of transmitted beam [mm]: 10.1
Material: Synthetic fused silica
Incident angle [ ° ]: 55.9
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 2
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 355
Diameter D [mm]: 25.4
Maximum diameter of transmitted beam [mm]: 13.1
Material: Synthetic fused silica
Incident angle [ ° ]: 55.9
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 2
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 355
Diameter D [mm]: 30
Maximum diameter of transmitted beam [mm]: 15.7
Material: Synthetic fused silica
Incident angle [ ° ]: 55.9
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 2
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
Diameter D [mm]: 20
Maximum diameter of transmitted beam [mm]: 9.9
Material: BK7
Incident angle [ ° ]: 56.6
Transmittance of P polarized light [%]: >95
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 5
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
Diameter D [mm]: 25.4
Maximum diameter of transmitted beam [mm]: 12.9
Material: BK7
Incident angle [ ° ]: 56.6
Transmittance of P polarized light [%]: >95
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 5
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
Diameter D [mm]: 30
Maximum diameter of transmitted beam [mm]: 15.4
Material: BK7
Incident angle [ ° ]: 56.6
Transmittance of P polarized light [%]: >95
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 5
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 20
Maximum diameter of transmitted beam [mm]: 10
Material: BK7
Incident angle [ ° ]: 56.4
Transmittance of P polarized light [%]: >96
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 7
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 25.4
Maximum diameter of transmitted beam [mm]: 12.9
Material: BK7
Incident angle [ ° ]: 56.4
Transmittance of P polarized light [%]: >96
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 7
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf

PBS-C.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 30
Maximum diameter of transmitted beam [mm]: 15.5
Material: BK7
Incident angle [ ° ]: 56.4
Transmittance of P polarized light [%]: >96
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 7
Surface flatness of substrate: λ/10
Extinction ratio of transmission Ts : Tp: 1 : 200
Beam Deviation: <5
Coating: Front surface: Dielectric multi-layer polarization coating Rear surface: No coating
Surface Quality (Scratch - Dig): 10-5
Clear aperture [mm]: 90% of the diameter

Downloads

OSE-PBS-C.pdf
