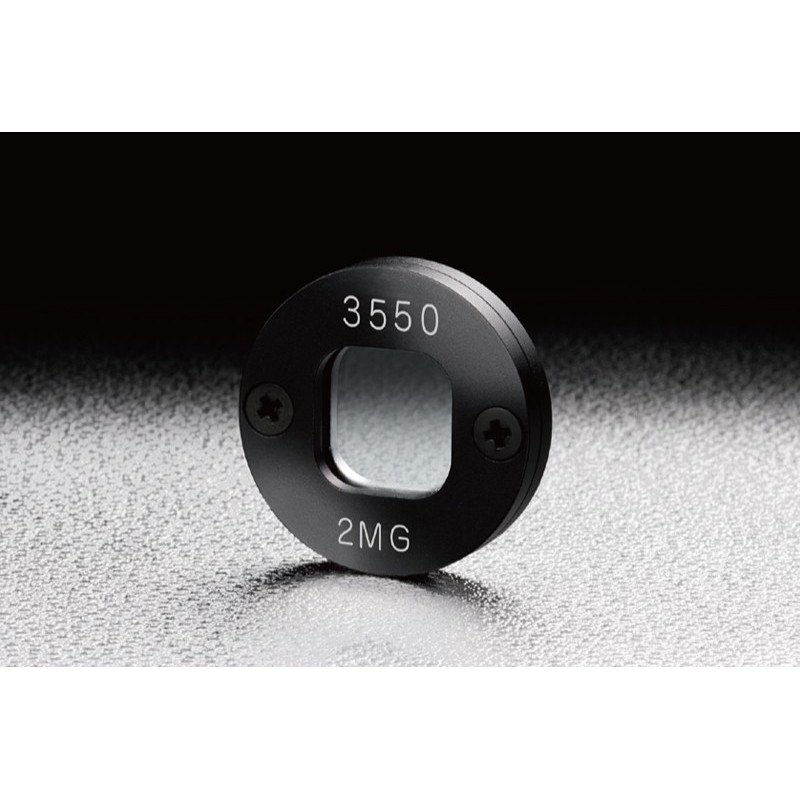

Air Gap Type Waveplates

search
-->

Reference number: OSE-WPQG-2660-2M

Two-part air-gap waveplates are suitable for use with high energy lasers.

Wavelength Range in nm
Phase Difference (1064 nm)
Wavelength Range in nm
Phase Difference (1064 nm)
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: Optical grade crystalline quarts, MgF2
  • Material of frame: Aluminum Finishing: Black anodized
  • Transmittance [%]: 98
  • Surface flatness of substrate: λ/10
  • Angular deviation of transmitted beam: <5
  • Coating: Both surfaces: Narrowband multi-layer anti-reflection coating (Four surfaces)
  • Surface Quality (Scratch - Dig): 20-10
  • Clear aperture [mm]: 15×15
