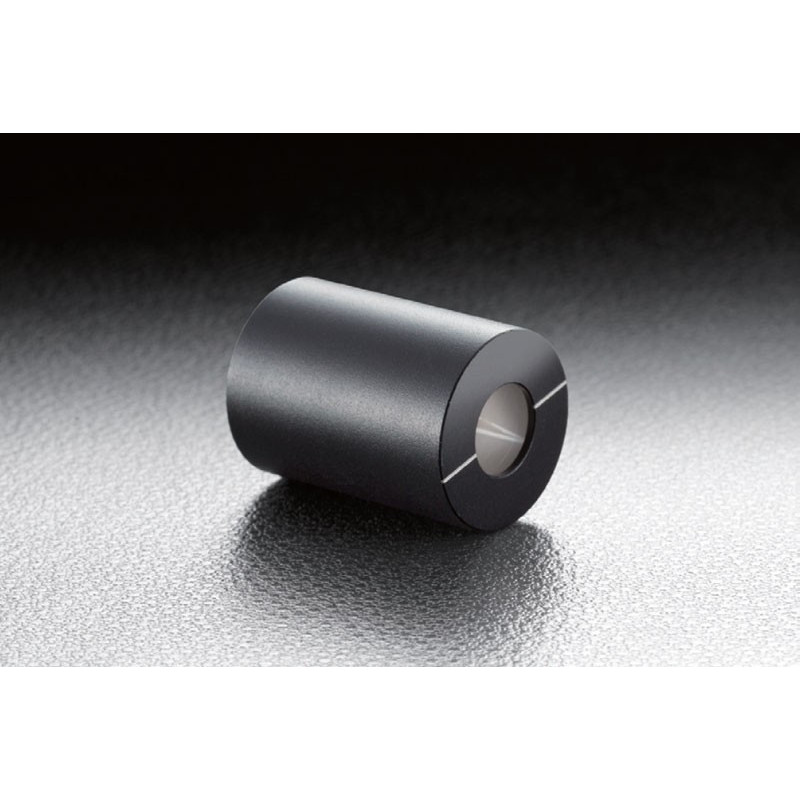

Glan Thompson Prisms, Calcite

-->

Reference number: OSE-GTPC-08-28SN

These are special polarizers with minimal transmission loss. Calcite can be used in the visible to infrared range.

Wavelength Range in nm

Diameter A in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±7
ØA [mm]: 8
ØD×L [mm]: 25.4×28

Downloads

OSE-GTPB_GTPC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±7
ØA [mm]: 10
ØD×L [mm]: 25.4×33

Downloads

OSE-GTPB_GTPC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±7
ØA [mm]: 10
ØD×L [mm]: 25.4×33

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±12.5
ØA [mm]: 6
ØD×L [mm]: 15×26

Downloads

OSE-GTPB_GTPC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±12.5
ØA [mm]: 8
ØD×L [mm]: 25.4×32

Downloads

OSE-GTPB_GTPC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±12.5
ØA [mm]: 10
ØD×L [mm]: 25.4×38

Downloads

OSE-GTPB_GTPC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 350 - 2300
Material: Calcite
Material of frame: Aluminum Finishing: Black anodized
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Beam Deviation: <3
Coating: MgF2 Single-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Extinction ratio: <5×10^-5
Acceptance angle [ ° ]: ±12.5
ØA [mm]: 10
ØD×L [mm]: 25.4×38
