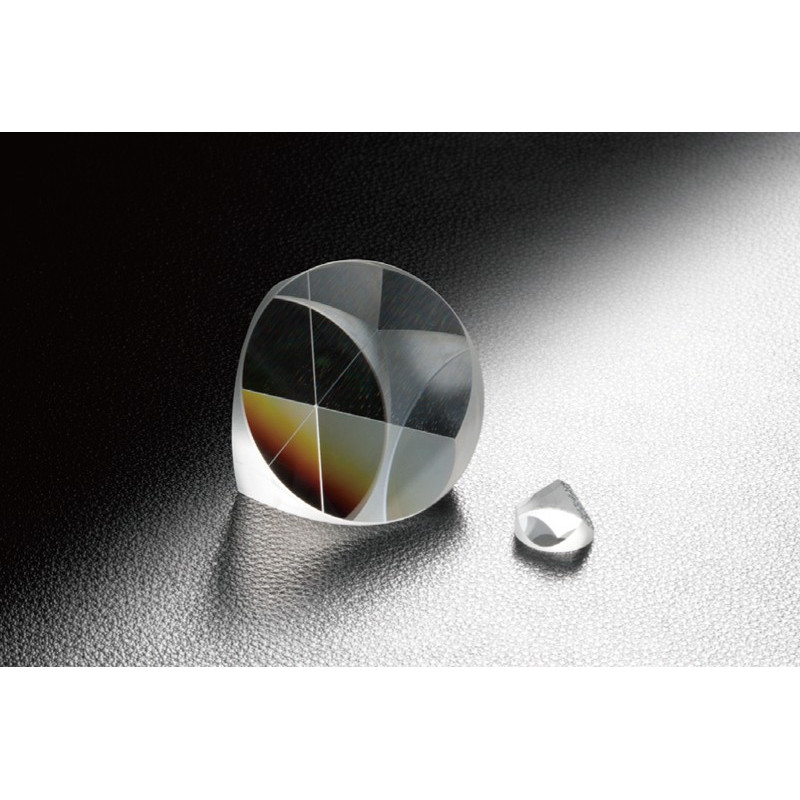

Corner Cube Prisms

search
-->

Reference number: OSE-CCB-10

Corner cubes have the property that light incident on the prism face is deflected 180 degrees regardless of its angle of incidence.

Coating
Diameter in mm
Coating
Diameter in mm
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: BK7
  • Refractive index nd: 1.517
  • Accuracy on the side of the aperture: λ/4
  • Angular deviation of beam [´´]: <5
  • Coating: Uncoated
  • Surface Quality (Scratch-Dig): 40-20
  • Clear aperture: 90% of actual aperture
