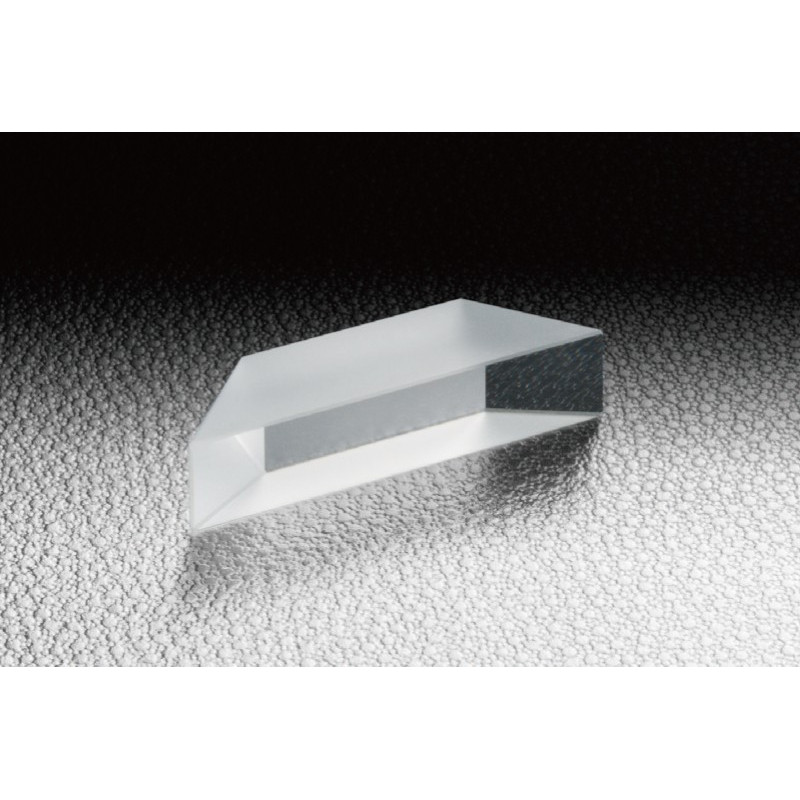

Dove Prisms

search
-->

Reference number: OSE-DOP-10-4

Dove prisms have the useful property of completely inverting an image by 180 degrees.

Coating
A - B in mm
Coating
A - B in mm
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: BK7
  • Refractive index nd: 1.517
  • Angle: 45°±3´
  • Surface flatness of substrate: λ/4
  • Coating: Uncoated
  • Surface Quality (Scratch-Dig): 2010
  • Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimensions A and B
