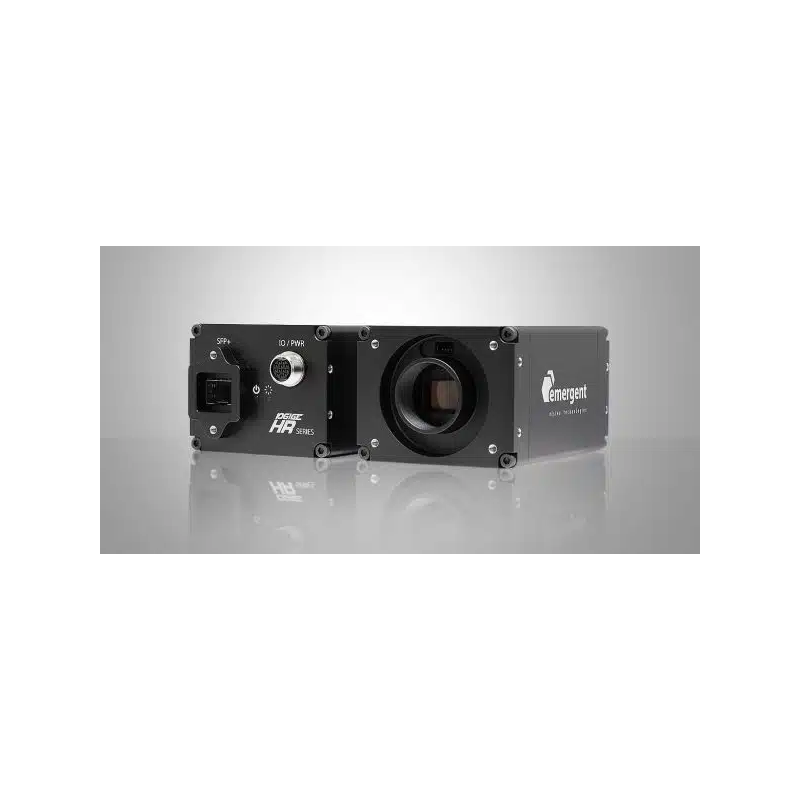

HR Area Scan Camera 10GigE

search
-->

Artikel-Nr.: EVT-HR-XXX

Industrielle 10 GigE-Flächenkamera für hohe Geschwindigkeiten mit bis zu 1586 fps, Auflösungen von 0.5 bis 50 MP, Sensoren von AMS und Sony

alt

Für mehr Infos
Experten kontaktieren

Bildverarbeitung Team

alt

Für mehr Infos
Experten kontaktieren

Bildverarbeitung Team
Tel.: +49 8153 405-11

Beschreibung

Logo Emergent

Die 10 GigE-Flächenkameras der HR Serie liefern bis ca. 1586 Bilder pro Sekunde bei voller Auflösung (0.5 MP).

Ideal für Anwendungen im industriellen Bereich, die höchste Anforderungen stellen an:

  • Geschwindigkeit
  • Auflösung
  • Zuverlässigkeit im industriellen Umfeld
  • Synchronität bei Multi-Kamerasystemen (Sync-Signal / PTP)

Extrem niedrige Host-Systemlast dank optimierter GigE Vision GVSP-Technologie – True Zero Copy.

Bereit für GigE Vision 3.0/RDMA

Große Auswahl an unterschiedlichen Bildsensoren von AMS und Sony.

Alle Kameras sind GigE Vision / GenICam kompatibel.

Chroma Resolution Frame Rate Interface Sensor Name Pixel Size
HR-500-S-M Mono 0.5MP 1586fps 10GigE SFP+ Sony IMX426 9×9µm
HR-500-S-C Color 0.5MP 1586fps 10GigE SFP+ Sony IMX426 9×9µm
HR-1800-S-M Mono 1.76MP 660fps 10GigE SFP+ Sony IMX425 9×9µm
HR-1800-S-C Color 1.76MP 660fps 10GigE SFP+ Sony IMX425 9×9µm
HR-2000-M Mono 2MP 338fps 10GigE SFP+ AMS CMV2000 5.5×5.5µm
HR-2000-C Color 2MP 338fps 10GigE SFP+ AMS CMV2000 5.5×5.5µm
HR-2000-N Near-Infrared 2MP 338fps 10GigE SFP+ AMS CMV2000 5.5×5.5µm
HR-2000-S-M Mono 2.01MP 485fps 10GigE SFP+ Sony IMX422 4.5×4.5µm
HR-2000-S-C Color 2.01MP 485fps 10GigE SFP+ Sony IMX422 4.5×4.5µm
HR-2800-S-M Mono 2.8MP 410fps 10GigE SFP+ Sony IMX421 4.5×4.5µm
HR-2800-S-C Color 2.8MP 410fps 10GigE SFP+ Sony IMX421 4.5×4.5µm
HR-3000-S-M Mono 3.2MP 216fps 10GigE SFP+ Sony IMX252LLR 3.45×3.45µm
HR-3000-S-C Color 3.2MP 216fps 10GigE SFP+ Sony IMX252LQR 3.45×3.45µm
HR-4000-M Mono 4MP 179fps 10GigE SFP+ AMS CMV4000 5.5×5.5 m
HR-4000-C Color 4MP 179fps 10GigE SFP+ AMS CMV4000 5.5×5.5µm
HR-4000-N Near-Infrared 4MP 179fps 10GigE SFP+ AMS CMV4000 5.5×5.5µm
HR-5000-S-M Mono 5MP 163fps 10GigE SFP+ Sony IMX250LLR 3.45×3.45µm
HR-5000-S-C Color 5MP 163fps 10GigE SFP+ Sony IMX250LQR 3.45×3.45µm
HR-5000-S-PM Mono Polarized 5MP 163fps 10GigE SFP+ Sony IMX250MZR 3.45×3.45µm
HR-5000-S-PC Color Polarized 5MP 163fps 10GigE SFP+ Sony IMX250MYR 3.45×3.45µm
HR-5000-SB-M Mono 5.1MP 240fps 10GigE SFP+ Sony IMX537 2.74×2.74μm
HR-5000-SB-C Color 5.1MP 240fps 10GigE SFP+ Sony IMX537 2.74×2.74μm
HR-5000-SBL-M Mono 5.1MP 99fps 10GigE SFP+ Sony IMX547 2.74×2.74μm
HR-5000-SBL-C Color 5.1MP 99fps 10GigE SFP+ Sony IMX547 2.74×2.74μm
HR-7000-S-M Mono 7.06MP 170fps 10GigE SFP+ Sony IMX420 4.45×4.45µm
HR-7000-S-C Color 7.06MP 170fps 10GigE SFP+ Sony IMX420 4.45×4.45µm
HR-8000-S-M Mono 8.9MP 110fps 10GigE SFP+ Sony IMX255LLR 3.45×3.45µm
HR-8000-S-C Color 8.9MP 110fps 10GigE SFP+ Sony IMX255LQR 3.45×3.45µm
HR-8000-SB-M Mono 8.1MP 145fps 10GigE SFP+ Sony IMX536 2.74×2.74μm
HR-8000-SB-C Color 8.1MP 145fps 10GigE SFP+ Sony IMX536 2.74×2.74μm
HR-8000-SB-U UV 8.1MP 145fps 10GigE SFP+ Sony IMX487 2.74×2.74μm
HR-8000-SBL-M Mono 8.1MP 73fps 10GigE SFP+ Sony IMX546 2.74×2.74μm
HR-8000-SBL-C Color 8.1MP 73fps 10GigE SFP+ Sony IMX546 2.74×2.74μm
HR-12000-M Mono 12MP 84fps 10GigE SFP+ AMS CMV12000 5.5×5.5µm
HR-12000-C Color 12MP 84fps 10GigE SFP+ AMS CMV12000 5.5×5.5µm
HR-12000-S-M Mono 12MP 80fps 10GigE SFP+ Sony IMX253LLR 3.45×3.45µm
HR-12000-S-C Color 12MP 80fps 10GigE SFP+ Sony IMX253LQR 3.45×3.45µm
HR-12000-S-PM Mono Polarized 12MP 80fps 10GigE SFP+ Sony IMX253MZR 3.45×3.45µm
HR-12000-S-PC Color Polarized 12MP 80fps 10GigE SFP+ Sony IMX253MYR 3.45×3.45µm
HR-12000-SB-M Mono 12.4MP 100fps 10GigE SFP+ Sony IMX535 2.74×2.74μm
HR-12000-SB-C Color 12.4MP 100fps 10GigE SFP+ Sony IMX535 2.74×2.74μm
HR-12000-SBL-M Mono 12.4MP 68fps 10GigE SFP+ Sony IMX545 2.74×2.74μm
HR-12000-SBL-C Color 12.4MP 68fps 10GigE SFP+ Sony IMX545 2.74×2.74μm
HR-16000-SB-M Mono 16.13MP 77fps 10GigE SFP+ Sony IMX532 2.74×2.74μm
HR-16000-SB-C Color 16.13MP 77fps 10GigE SFP+ Sony IMX532 2.74×2.74μm
HR-16000-SBL-M Mono 16.13MP 52fps 10GigE SFP+ Sony IMX542 2.74×2.74μm
HR-16000-SBL-C Color 16.13MP 52fps 10GigE SFP+ Sony IMX542 2.74×2.74μm
HR-17000-S-M Mono 16.8MP 61fps 10GigE SFP+ Sony IMX387 3.45×3.45μm
HR-17000-S-C Color 16.8MP 61fps 10GigE SFP+ Sony IMX387 3.45×3.45μm
HR-20000-M Mono 20MP 32fps 10GigE SFP+ AMS CMV20000 6.4×6.4μm
HR-20000-C Color 20MP 32fps 10GigE SFP+ AMS CMV20000 6.4×6.4μm
HR-20000-S-M Mono 19.5MP 43fps 10GigE SFP+ Sony IMX367 3.45×3.45μm
HR-20000-S-C Color 19.5MP 43fps 10GigE SFP+ Sony IMX367 3.45×3.45μm
HR-20000-SB-M Mono 20.28MP 61fps 10GigE SFP+ Sony IMX531 2.74×2.74μm
HR-20000-SB-C Color 20.28MP 61fps 10GigE SFP+ Sony IMX531 2.74×2.74μm
HR-20000-SBL-M Mono 20.28MP 43fps 10GigE SFP+ Sony IMX541 2.74×2.74μm
HR-20000-SBL-C Color 20.28MP 43fps 10GigE SFP+ Sony IMX541 2.74×2.74μm
HR-25000-SB-M Mono 24.47MP 51fps 10GigE SFP+ Sony IMX530 2.74×2.74μm
HR-25000-SB-C Color 24.47MP 51fps 10GigE SFP+ Sony IMX530 2.74×2.74μm
HR-25000-SBL-M Mono 24.47MP 35fps 10GigE SFP+ Sony IMX540 2.74×2.74μm
HR-25000-SBL-C Color 24.47MP 35fps 10GigE SFP+ Sony IMX540 2.74×2.74μm
HR-30000-S-M Mono 31.36MP 35fps 10GigE SFP+ Sony IMX342 3.45×3.45µm
HR-30000-S-C Color 31.36MP 35fps 10GigE SFP+ Sony IMX342 3.45×3.45µm
HR-50000-M Mono 50MP 23fps 10GigE SFP+ AMS CMV50000 4.6×4.6µm
HR-50000-C Color 50MP 23fps 10GigE SFP+ AMS CMV50000 4.6×4.6µm
