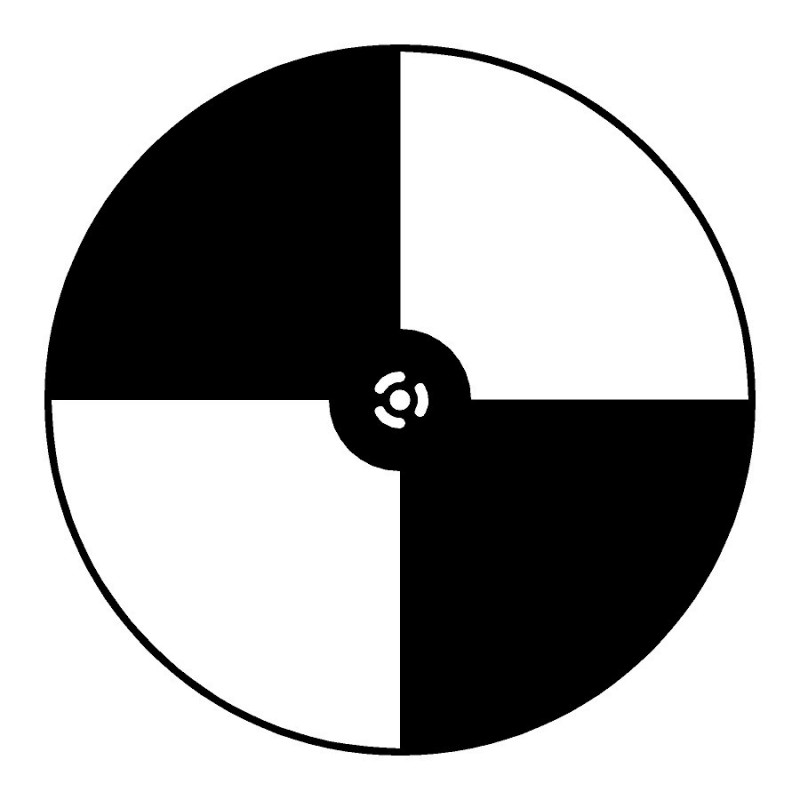

SCT-340D2 200 mm 2 Slot Optical Chopper Disc

search
-->

Reference number: SCT-340D2

200 mm diameter, 2 slot disc, 0.3 mm brass, chemically blacked

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Features

  • No. Of Slots: 2
  • Mark to Space Ratio: 1 to 1
  • Outside Diameter: 200 mm
  • Thickness:3 mm
  • Material: BS2870 CZ108 half hard Brass
  • Finish: Chemically blacked
  • Max Speed: 6000 rpm

Dimensions

  • a: 9 mm
  • b: 4 mm
  • d: 0 mm
  • q: 2 mm
  • r: 78 mm
  • s: 46 mm
  • t: 200 mm
