Reference number: IPS-Raman-Probe

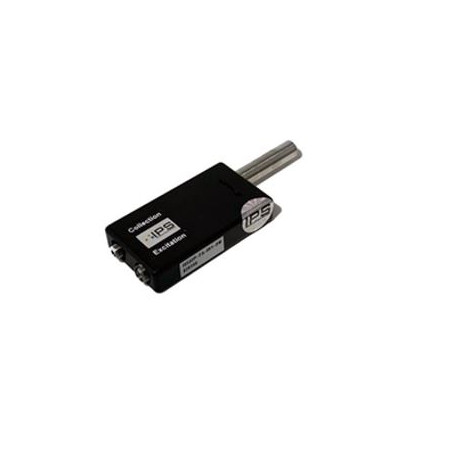

The Raman Probe is designed for our multimode fiber coupled lasers from IPS and offers highest throughput and low stray light

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

Raman Probe with high throughput

Raman spectroscopy delivers characteristic information of molecules obtained through intermolecular vibrations. The basic composition of a Raman spectrometer consists of a laser, a spectrometer and a Raman probe. Together with our partner Innovative Photonic Solution, we supply wavelength-stabilized diode laser modules as well as suitable probes that offer the advantages of highest throughput and low stray light. This enables you to achieve unprecedented results in your Raman spectroscopy projects.

Specifications

  • Optimized to mate with IPS multimode fiber coupled lasers
  • Standard wavelengths: 405 nm, 532 nm, 638 nm, 785 nm, 808 nm, 830 und 1064 nm
  • High throughput optical design with either 65cm-1, 125cm-1 or 200cm-1 cut-on wavelength
  • Working distance: 8.1 mm or 9.7 mm
  • Flexible design to optimize collection efficiency for low or high f# spectrometers
  • Selectable excitation & collection fiber type
