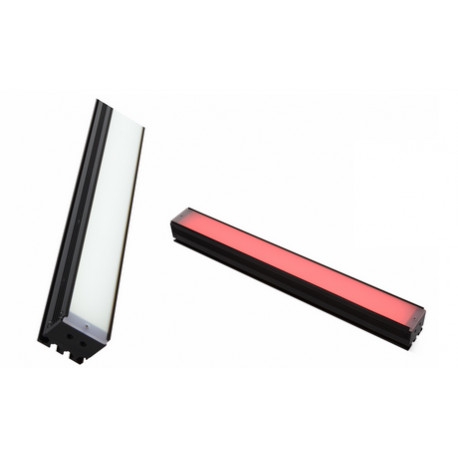

OPT-LIT High Uniformity Barlights
Reference number: OPT-LIT
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
Product Features:
- High uniformity
- Standard dimensions of emitting surface can be made into 2000 mm
- Can be installed by M3 threaded hole and also be installed in the three extrusion slots by inserting the M3 nut
|
Part number |
Dimensions [mm] |
Color [c] |
Emitting Surface [mm] |
Output [W] |
Compatible Controller |
|
OPT-LIT9832-[c] |
98 x 32 |
R / G / B / W |
84 x 26 |
5,5 / 4,3 / 5,3 / 6,0 |
|
|
OPT-LIT14032-[c] |
140 x 32 |
R / G / B / W |
103 x 26 |
6,5 / 6,2 / 6,9 / 7,2 |
|
|
OPT-LIT18232-[c] |
182 x 32 |
R / G / B / W |
157 x 26 |
6,4 / 6,8 / 9,1 / 9,8 |
|
|
OPT-LIT22432-[c] |
224 x 32 |
R / G / B / W |
197 x 26 |
7,9 / 8,4 / 10,7 / 10,3 |
|
|
OPT-LIT26632-[c] |
266 x 32 |
R / G / B / W |
236 x 26 |
9,5 / 10,0 / 12,9 / 12,4 |
|
|
OPT-LIT30832-[c] |
308 x 32 |
R / G / B / W |
308 x 26 |
11,0 / 11,8 / 13,6 / 14,2 |
|
|
OPT-LIT35032-[c] |
350 x 32 |
R / G / B / W |
400 x 26 |
10,6 / 13,4 / 15,6 / 16,3 |
|
|
OPT-LIT39232-[c] |
392 x 32 |
R / G / B / W |
480 x 26 |
12,0 / 15,0 / 17,7 / 17,9 |
|
|
OPT-LIT43432-[c] |
434 x 32 |
R / G / B / W |
864 x 26 |
13,1 / 16,5 / 19,4 / 18,1 |
