Reference number: DCM-SAX

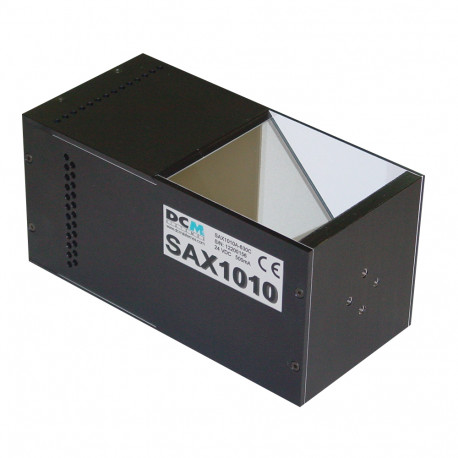

This lighting produces a very diffused light from the camera axis. Reflections and shadows are perfectly eliminated with this technology.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
These systems allow to light, from the camera axis through a diffused light, objects for their inspection, avoiding shadows and shines.
| Model | Width* | Height* |
| DCM-SAX0505A | 50mm | 50mm |
| DCM-SAX1010A | 100mm | 100mm |
| DCM-SAX1515A | 150mm | 150mm |
| DCM-SAX2020A | 200mm | 200mm |
| DCM-SAX2515A | 250mm | 150mm |
* Width and height of the emission window
Available Wavelength
| Colour | Wavelength |
| Blue | 470nm |
| Green | 525nm |
| Red | 630nm |
| White | 4100°K |
| Others | Consult |
Product matrix
| Model | Version | -Wavelength | Type |
| DCM-SAX | 0505A | -470 | C* |
| 1010A | -525 | S** | |
| 1515A | -630 | ||
| 2020A | -W00 | ||
| 2515A |
*C = CW Mode (Continues wave)
**S = Strobe
Example:
DCM-SAX1515A-470S Diffused axial lighting system with 150 mm x 150 mm lighting area and 470nm as strobe version.
There are 2 strobe controller available. The VST11L has one in- and output. The VST33I has 3 open collector outputs. The System has a PC Serial Communication or PLC connection.
