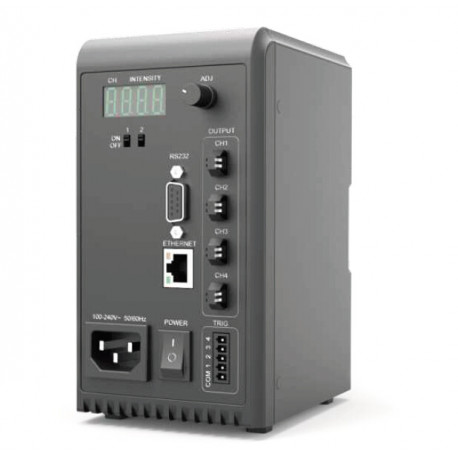

OPT-DPA2024E Digital Current Controller
Reference number: OPT-DPA2024E
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Part number |
Channels |
Compatible LED-Light |
|
OPT-DPA1024E-4 |
4 |
10mA~1A 24V light |
|
OPT-DPA2024E-4 |
10mA~2A 24V light |
|
|
OPT-DPA1024E-8 |
8 |
10mA~1A 24V light |
|
OPT-DPA2024E-8 |
10mA~2A 24V light |
|
|
OPT-DPA1024E-16 |
16 |
10mA~1A 24V light |
|
OPT-DPA2024E-16 |
10mA~2A 24V light |
Product Features:
- Programmable trigger mode available, 32 steps at max; trigger source, intensity and trigger pulse width of each step can be set
- Autosense of rated current for LED light
- Trigger response time ≤ 15 µs
- Max trigger frequency up to 20 KHz
- Simultaneous communication of multiple channels available
- Manual setting for max output current
- 256 light intensity levels
- Trigger signal input: connect an external signal source (e.g. a camera trigger signal) to strobe the LED light, and extend life span of light
- Support RS232 communication
- Support 100 M Ethernet communication
- Temperature controlled fan, longer life span
- Withstanding high voltage (AC1500V 1 min, leak current < 10mA)
- High insulation resistance (DC500V > 20 MΩ)
- Easy to install: screw and DIN rail mounting available
