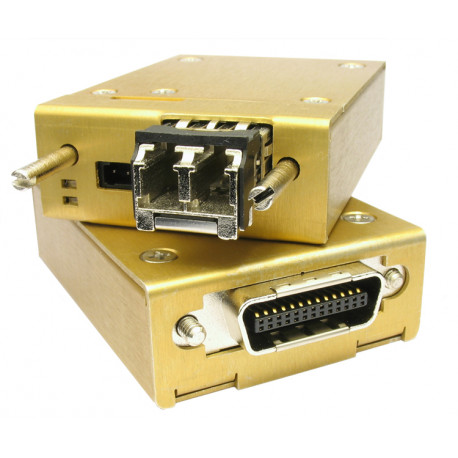

Phrontier PHIRE - Compact Camera Link Fiber Adapter (Base)

-->

Reference number: PHT-PHIRE

Compact Camera Link fiber adapter for direct plugging into the camera and framegrabber. Only supports the Base Camera Link configuration.

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

machinevision@laser2000.com

Description

PHIRE Camera Link Fiber Adapter, PoCL

Your application is space and cost sensitive? The PHIRE product reaches transmission distances of up to 10 km at 85 MHz and is compatible with PoCL.

Supports all Camera Link Base configurations
Up to 2.5 Gb/s effective transmission bandwidth
Plugs directly into cameras and framegrabbers without any Camera Link cables, saving both space and cost (MDR26 or SDR26 with adapter)
Single 5~24 VDC power supply
Optional: One or two LC duplex fiber interfaces
Transmission distance - up to 250 m (multi-mode) and 10 km (single-mode)
Compact size (LxWxH) - 59.1 mm x 39.4 mm x 17 mm
Optional: Extended temperature range (-40 to 70°C)

2 fibers, Base (OEM Board available)		1 fiber, Base
Model	Description	Model	Description
PHR-85-M020	24 bit, 85MHz, multi-mode, up to 200 m	PHL-85-S07	24 bit, 85MHz, single-mode, up to 5 km
PHR-85-M025	16 bit, 85MHz, multi-mode, up to 250 m	PHL-85-M25	24 bit, 85MHz, multi-mode, up to 250 m
PHR-85-S07	24 bit, 85MHz, single mode, up to 7 km	PHL-85-S10	16 bit, 85MHz, single mode, up to 10 km
PHR-85-S10	16 bit, 85MHz, single mode, up to 10 km	PHL-85-M50	16 bit, 85MHz, multi-mode, up to 500 m
PHR-68-M025	24 bit, 68MHz, multi-mode, up to 250 m	PHL-68-S10	24 bit, 68MHz, single mode, up to 15 km
PHR-68-S10	24 bit, 68MHz, single mode, up to 10 km	PHL-68-M50	24 bit, 68MHz, multi-mode, up to 500 m
