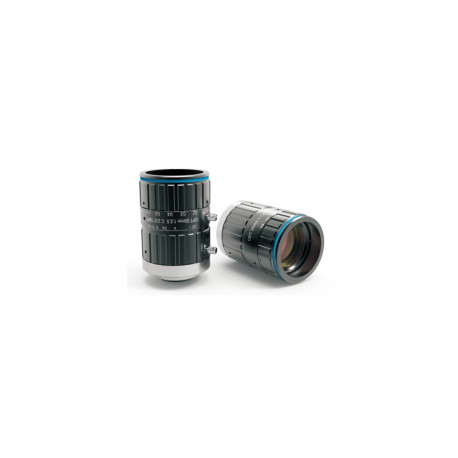

OPT IR Fixed-focal Lens

OPT IR Fixed-focal Lens
search
  • OPT IR Fixed-focal Lens
-->

Reference number: OPT-IR-FF

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product Features:

  • Compatible for IR: Research and development for IR project, compatible for 800 – 1050 nm
  • Professional grade design and stable quality
  • Professional grade optical performance
  • High-resolution optical design, compatible with many common industrial 5 MP cameras. Suitable for 3.45 µm pixel size and above and 5 MP cameras with sensors size of 2/3’’.
  • The highest resolution is 140 lp/mm to ensure image sharpness.
  • Low distortion: Total distortion < 0.1 %
  • High uniformity: Use wide-angle lens to control the attenuation of the edge light and get a whole, bright, sharp image.



Part number

Focal Length [mm]

Aperture Range

WD [mm]

Distortion

Matching Chip

OPT-C3514-5M-IR

35

F1.4 – F16

390 - ∞

< 0.1 %

1/3’’, 1/2’’, 1/1.8’’, 2/3’’

OPT-C5025-5M-IR

50

F2.5 – F22

570 - ∞

< 0.1 %

1/3’’, 1/2’’, 1/1.8’’, 2/3’’
