Reference number: FLK-MS-POE

Quickly determine if a problem is caused by a faulty or disconnected cable, insufficient power supply, or a powered device (PD).

alt

Need more info?
Contact our expert.

Fiber Optics Team
Phone: +49 8153 405-11

Description

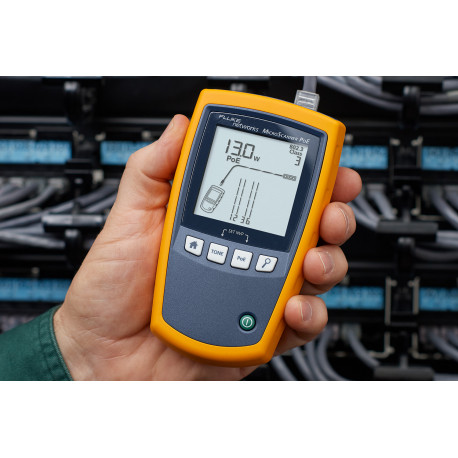

State-of-the-art MicroScanner generation verifies voice, data and video cables and service with an extremely convenient user interface.
  • Quickly determine if a problem is caused by a faulty or unconnected cable, insufficient power supply, or a powered device (PD).
  • Information for the network engineer to investigate possible switch configurations or malfunctions.
  • PoE Switch Verification - Determine if a switch port can provide sufficient power by reporting the PoE class (0-8).
  • Powered Pairs - Graphically displays power-carrying pairs, including dual signatures where the switch port is powering 2 or 4 pairs (802.3bt or PoE ++).
  • Active Switch Detection - Identify if a cable is connected to a switch port and the connection speed is up to 10G.
  • Cable testing - Identify shorted, open or crossed wires at both ends and the length of each pair and send tones to locate cables.
  • Validate and inspect your Industrial Ethernet copper cabling.
  • PoE injector testing - display injector voltage level.

PoE Klassen
