Reference number: CUT-MSW

The Layer 2+ 1/10 Gigabit-Multi-Service-Ethernet-Switching Solutions from CTC Union Technologies is a Carrier-Ethernet-Access-Switch-Plattform

alt

Need more info?
Contact our expert.

Network Technology Team
Phone: +49 8153 405-11

Description

Carrier Ethernet Switching Solutions

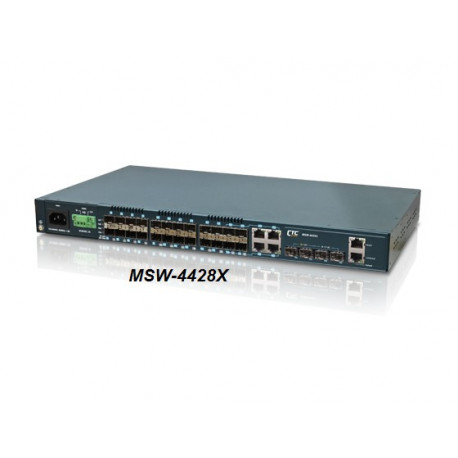

MSW-4428X

24x 100/100Base-X SFP + 4x GbE (RJ-45) with 4x 1G/10G (SFP⁺) L2+ Carrier Ethernet Switch

The MSW-4428X is positioned as a layer 2+ Gigabit access switch solution. It is equipped with 24 100Base-FX/1000Base-X dual speed SFP slots, 4 ports GbE (10/100/1000Base-T) ports and 4 1000Base-X/10GBase-X dual speed SFP⁺ uplink slots. The MSW-4428X offers the best flexibility and scalability for operators or service providers to deploy their Metro Ethernet network. With the deployment of MSW-4428X, operators or service providers can flexibly provision the bandwidth of either 100Mbps or 1000Mbps as well as uplink connection of Gigabit or 10G speed upon their service applications. The MSW-4428X has built-in dual power supplies to enable power redundancy and enhance high network availability.Aimed at Metro Ethernet applications, the specifications of MSW-4428X fully meet the attributes of Carrier Ethernet proposed by MEF (Metro Ethernet Forum). It complies with CE2.0 standard to support E-Line/E-LAN/E-Tree/E-Access service and enables the bandwidth profile configuration delivering SLA (Service Level Agreement) for end-to-end performance characteristics as well as Ethernet OAM functionality to support carrier grade service OAM management rapidly detecting and recovering from the network incidents in real time.

MSW-4424A

24x GbE, SFP + 4x 10GE (SFP⁺) L2+ Carrier Ethernet Switch

MSW-4424A layer 2+ managed Gigabit Ethernet switches are positioned as a Carrier Ethernet access switch solution. They are equipped with 24 SFP based 100Base-FX/1000Base-X dual speed optical ports and 4 10G Base-X SFP+ or 1000Base-X SFP uplink ports. The MSW-4424A offers the best flexibility and scalability for operators and service providers to deploy their Metro Ethernet networks. Aimed specifically at Metro Ethernet deployment, the specifications of MSW-4424A fully meet the attributes of Carrier Ethernet proposed by the Metro Ethernet Forum. The switches comply with MEF 9 standard to support E-Line/E-Access services and MEF 14 standard to enable the bandwidth profile configuration for delivering SLA (Service Level Agreement) with predictable end-to-end performance characteristics. MSW-4424A also supports advanced service OAM management to rapidly detect and recover from the network incidents in real time.

MSW-4424CS

20x GbE, SFP + 4x GbE Combo + 4x 10GE(SFP⁺) L2+ Managed Carrier Ethernet Switch w/SyncE

The MSW-4424CS is positioned as a layer 2+ Gigabit access switch solution. It is equipped with 20 100Base-FX/1000Base-X dual speed SFP slots, 4 ports GbE combo (10/100/1000Base-T or 100/1000Base-X SFP) ports and 4 1000Base-X/10G Base-X dual speed SFP+ uplink slots. The MSW-4424CS offers the best flexibility and scalability for the operators or service providers to deploy their Metro Ethernet network. With the deployment of MSW-4424CS, the operators or service providers can flexibly provision the bandwidth for either 100Mbps or 1000Mbps as well as uplink connection of Gigabit or 10G speed upon their service applications. The MSW-4424CS has built-in dual power supplies to enable power redundancy function and enhance the high network availability.Aimed at Metro Ethernet applications, the specifications of MSW-4424CS fully meet the attributes of Carrier Ethernet proposed by MEF (Metro Ethernet Forum). It complies with MEF 9 standard to support E-Line/E-Access service and MEF 14 standard to enable the bandwidth profile configuration delivering SLA (Service Level Agreement) for end-to-end performance characteristics as well as Ethernet OAM functionality to support carrier grade service OAM management rapidly detecting and recovering from the network incidents in real time. MSW-4424CS supports timing synchronization features (SyncE & IEEE 1588v2) to enhance and migrate a carrier grade network for mobile backhaul applications.

MSW-4424C

20x GbE, SFP + 4x GbE Combo + 4x 10GE(SFP⁺) L2+ Managed Carrier Ethernet Switch

The MSW-4424C is positioned as a layer 2+ Gigabit access switch solution. It is equipped with 20 100Base-FX/1000Base-X dual speed SFP slots, 4 ports GbE combo (10/100/1000Base-T or 100/1000Base-X SFP) ports and 4 1000Base-X/10G Base-X dual speed SFP+ uplink slots. The MSW-4424C offers the best flexibility and scalability for operators or service providers to deploy their Metro Ethernet network. With the deployment of MSW-4424C, operators or service providers can flexibly provision the bandwidth for either 100Mbps or 1000Mbps as well as uplink connection of Gigabit or 10G speed in their service applications. The MSW-4424C has built-in dual power supplies to enable power redundancy and enhance the high network availability.Aimed at Metro Ethernet applications, the specifications of MSW-4424C fully meet the attributes of Carrier Ethernet proposed by MEF (Metro Ethernet Forum). It complies with MEF 9 standard to support E-Line/E-Access service and MEF 14 standard to enable the bandwidth profile configuration delivering SLA (Service Level Agreement) for end-to-end performance characteristics as well as Ethernet OAM functionality to support carrier grade service OAM management rapidly detecting and recovering from the network incidents in real time.
