Reference number: RES-CM-Pika-IR+

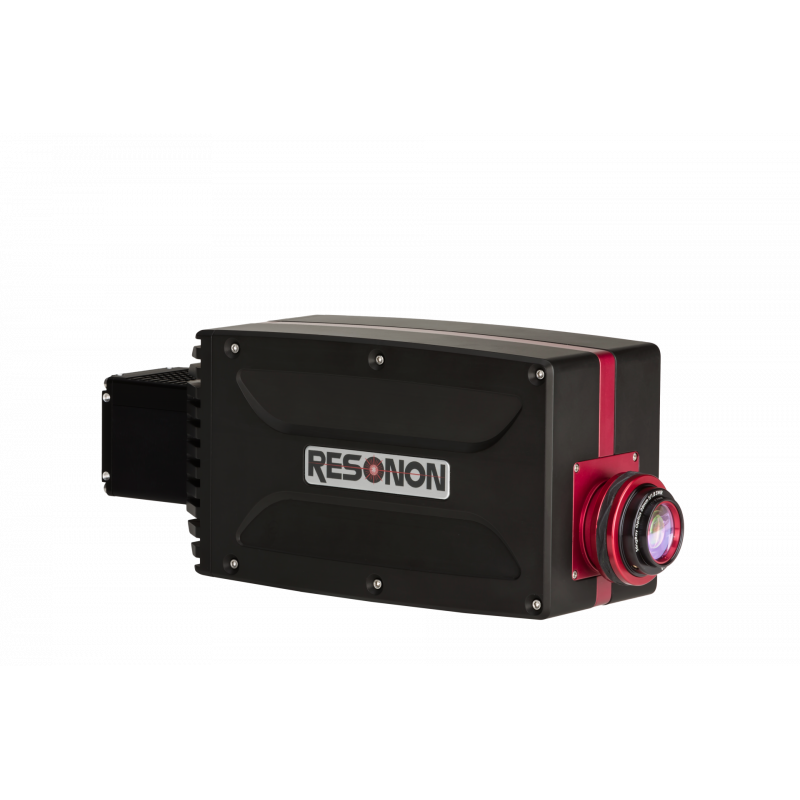

The Pika IR+ is a high performance near infrared hyperspectral camera. With 900-1700 nm spectral range, 640 spatial pixels and 5.6 nm FWHM spectral resolution, it is ideal for demanding laboratory and field applications.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description
The Pika IR+ hyperspectral camera covers the near-infrared (NIR) spectral range from 900 to 1700 nm. As a high-performance camera with high spatial and spectral resolution, it is ideal for infrared laboratory applications and offers exceptional image quality.
Spectral Range:With a spectral range of 900 to 1700 nm, the Pika IR+ opens up new dimensions of spectral data for your applications.
Spatial precision:With 640 spatial pixels per line, our camera ensures that every detail in your images is carefully captured.
Spectral excellence:With a spectral resolution of 5.6 nm FWHM, the Pika IR+ guarantees exceptional data quality for your projects.
A free version of Spectronon, with sample data cubes is available upon request.
| Spectral range | 900 - 1700 nm |
| Spectral resolution | 5.6 nm |
| Spectral Channels | 336 |
| Dispersion per Pixel | 2.38 nm |
| Spatial channels | 640 |
| Frame rate | 240 fps |
| Bit depth | 14 |
| Data interface | GigE |
| Power requirements | 12V, 5A |
| Weight | 2.95 kg |
| Dimensions (cm) | 11.5 x 26.4 x 8.8 |
| Operating Temperature | 5-40 °C |
| f / # | f / 1.8 |
| Pixel Size | 15 µm |
Standard objective lens options - Pika IR+
| Focal Length (mm) | FOV (deg) | IFOV (mrad) |
| 100 | 5.5 | 0.15 |
| 75 | 7.3 | 0.2 |
| 50 | 11 | 0.3 |
| 25 | 21.7 | 0.6 |
| 6 | 77.3 | 2.5 |
Other objective lenses are available. Please contact us to discuss your requirements.
