Reference number: RES-CM-Pika-IR-L

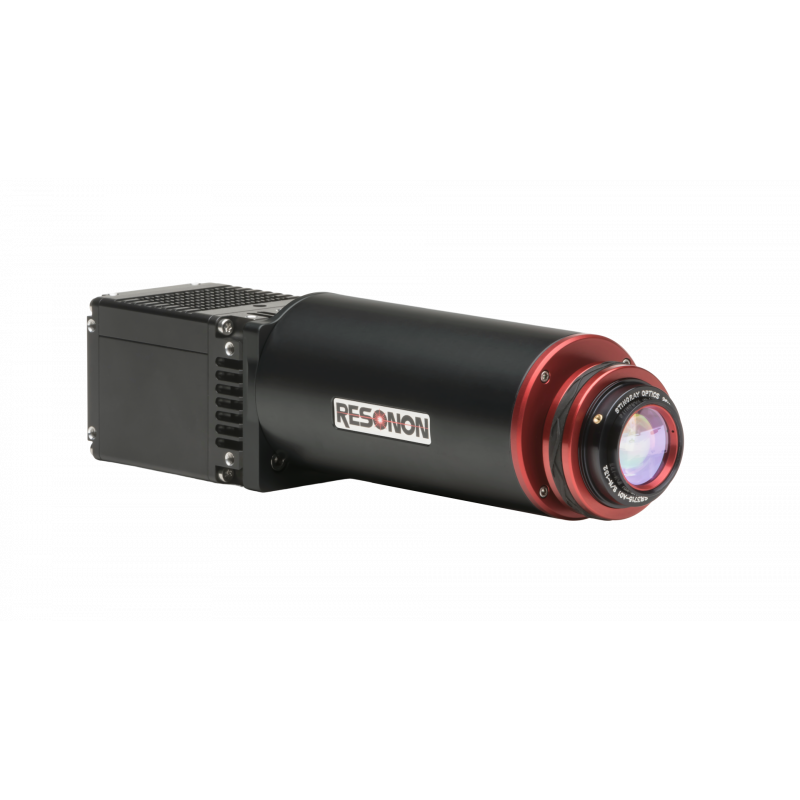

The PIKA-IR-L hyperspectral camera is a lightweight and compact pushbroom scanner specifically designed for airborne remote sensing applications. It offers fast data acquisition for a wide range of applications.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
The PIKA-IR-L is a lightweight and compact hyperspectral camera that reveals details beyond the limits of the human eye. It is ideal for airborne remote sensing applications, offering rapid data acquisition and seamless integration with a variety of systems.
A free version of SpectrononPro, along with sample datacubes is available.
Specifications
| Spectral Range | 925 - 1700 nm |
| Spectral Resolution | 5.9 nm |
| Spectral Channels | 236 |
| Dispersion per Pixel | 3.3 nm |
| Spatial Channels | 320 |
| Max Frame Rate | 364 fps |
| Bit Depth | 14 |
| Signal-to-Noise Ratio (peak) | 1581 |
| Connection Options | GigE |
| Power Requirements | 12V, 5A |
| Weight | 2.7 kgs |
| Dimensions (cm) | 6.8 x 21.0 x 6.3 |
| Operating Temperature | 5-40 °C |
| f / # | f / 1.8 |
| Pixel size | 30 µm |
Standard objective lens options – Pika IR-L
| Focal Length (mm) | FOV (deg) | IFOV (mrad) |
| 100 | 5.5 | 0.30 |
| 75 | 7.3 | 0.40 |
| 50 | 11 | 0.6 |
| 25 | 21.7 | 1.2 |
| 6 | 77.3 | 5.0 |
Other objective lenses are available. Please contact us to discuss your requirements.
