Reference number: DAT-Converter-IR

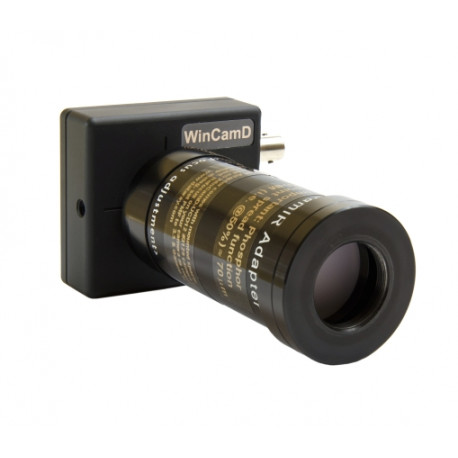

IR converter optics for Beam Profiler for measuring intensity distribution in the NIR range between 1480 and 1600 nm.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description
Description
The IR-converter enables standard CCD cameras to image in the NIR range 1495-1595 nm. The converting module is inserted between a large format lens and a digital camera to give an instant imaging system which extends sensitivity into the telecoms wavelength bands.
Highlights
| Parameter: | Specification |
| Active Area: | ø 27.5 mm |
| Spectral sensitivity: | 1495 to 1595 nm |
| Peak conversion: | 1510 and 1540 nm (no flat curve, multi-peak response) |
| Converted output: | 950 to 1075 nm |
| Distortion: | -1.0% barell distortion (inverted image) |
| Linearity: | non-linear |
| Spectral transmission: | 360 - 2000 nm @ F30.8 |
| Max. illumination: | 1 W/cm2 (damage threshold) |
| Dynamic range: | 48 dB with digital cameras |
| Lens mount: | C-Mount (adapters for others available on request) |
| Camera format: | 1/2" format or greater |
| Dimensions: | ø 46 mm x 97 mm, 210 g |
| Operating temp. range: | -10° to +40°C |
Further information can be found on the datasheet as additional information for download.
