Reference number: DAT-WinCamD-IRBB-CO2
The combination of the WinCamD-IRBB and a PPBS provides a perfect solution for measuring high-power CO2 lasers.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description

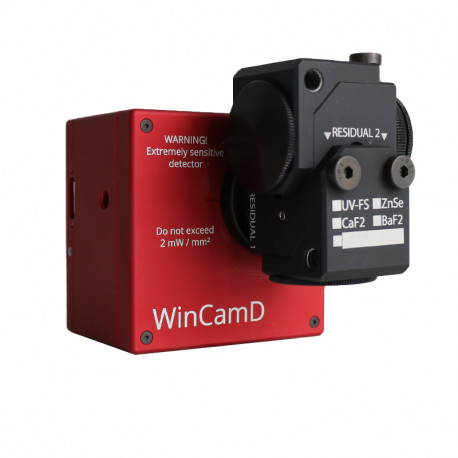

With the combination of our beam profiling successor WinCamD-IRBB and a suitable polarization preserving beam sampler PPBS-ZeSe or PPBS-BaF2, high-power CO2 lasers can be measured very precisely. With a pixel size of 17 µm, it allows for characterization of beams with high accuracy.
Due to the attenuator, laser beams can be measured with power up to 6 J/cm² (PPBS-ZeSe) or >10,36 J/cm² (PPBS-BF)
Specifications:
| Wavelength range | 9,4 µm - 10,6 µm * |
| Active area | 10,88 mm x 8,16 mm |
| Pixel size | 17 µm |
| Frame rate | 7,5 Hz |
| Signal-to-noise ratio | ≥1000:1 |
| ADC | 14-bit |
| Damage threshold PPBS-ZeSe | 6 J/cm² ** |
| Damage threshold PPBS-BF | >10,36 J/cm² ** |
* wavelength range camera (2-16 µm)
** 10600 nm, 74 ns, 4 Hz, Ø 1,06 mm
