Laser Safety Window 815-3000 nm + 9000-11000 nm

search
  • unv_fenster_glas3(2).jpg
  • unv_fenster_glas1(1).jpg
  • unv_fenster_glas2(1).jpg
-->

Reference number: UNV-GW-BL

The laser protection windows 815-3000 nm + 9000-11000 nm glass, with a daylight transmission of 68 % protect with a filter thickness of 4 mm from laser beams.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

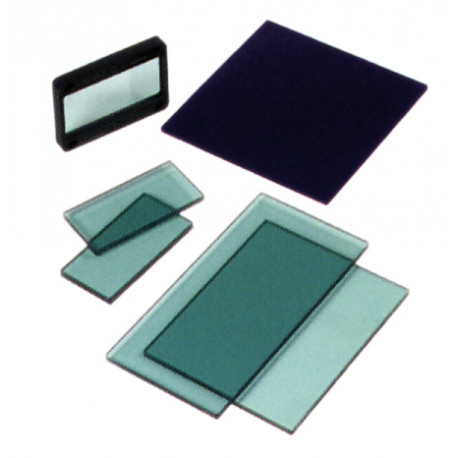

Laser protection window made of glass (815-3000 nm + 9000-11000 nm)

The laser protection windows enable the observation of processes or work in the laboratory, without having to classify the entire area as a laser area. Depending on the required protection level or window size, you can choose between windows made of glass or plastic. In addition to a large number of standard sizes, customer-specific blanks are also possible.

Optical Density / Wavelengths:

190-260 nm OD 9
815-1400 nm OD 3
850-1400 nm OD 4
890-1400 nm OD 5
930-1400 nm OD 6
950-1400 nm OD 7
990-1400 nm OD 8
1400-3000 nm OD5
9000-11000 nm OD6

Protection Levels (EN207):

190-260 nm D LB9 IR LB4
815-1400 nm DIR LB3
850-1400 nm DIR LB4
890-1400 nm DIR LB5
930-1400 nm DIR LB6 + M LB6Y
950-1400 nm D LB6 IR LB7 + M LB7Y
990-1400 nm D LB6 IR LB8 + M LB8Y
1400-3000 nm DI LB4
9000-11000 nm DI LB4

  • Visible light transmission: 68 %
  • Colour: Aqua
  • Filter Material: Glass
  • Thickness: 4.0mm
  • CE
  • Standard Size: 160 x 160 mm
