Reference number: UNV-PW-GK

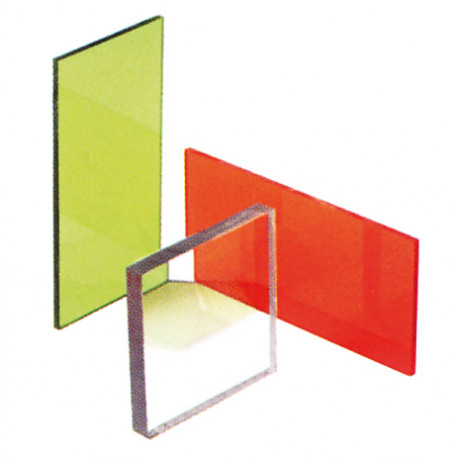

The laser protection windows 190-535 nm made of acrylic, with a daylight transmission of 34 % protect with a filter thickness of approximately 3.2 mm.
Need more info?
Contact our expert.
Laser Safety Team
Phone: +49 8153 405-11
Description
The laser protection windows enable the observation of processes or work in the laboratory, without having to classify the entire area as a laser area. Depending on the required protection level or window size, you can choose between windows made of glass or plastic. In addition to a large number of standard sizes, customer-specific blanks are also possible.
Optical Density / Wavelength:
190-315 nm OD 7
315-532 nm OD 7
315-535 nm OD 5
Protection Levels EN207:
190-315 nm D LB7 IR LB4
315-532 nm D LB5 IR LB7
315-535 nm DIR LB5
Protection Levels EN12254:
190-315 nm D AB7 IR AB2
315-532 nm D AB5 IR AB7
315-535 nm DIR AB5
Standard Sizes:
100 x 200 mm
200 x 200 mm
210 x 297 mm
200 x 300 mm
300 x 450 mm
450 x 600 mm
