Reference number: SPK-Diadem

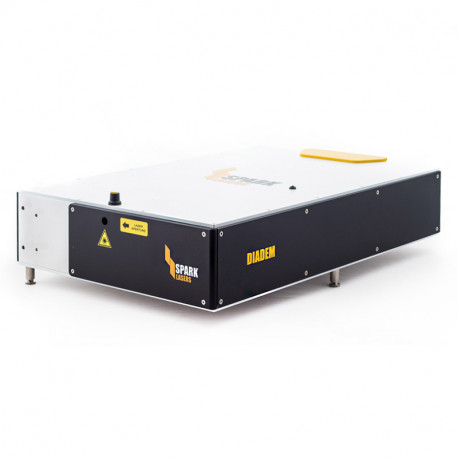

The DIADEM lasers are very compact, high-energy, ultrafast lasers for demanding applications in micro material processing and optogenetics.
Need more info?
Contact our expert.
Laser & Light Sources Team
Phone: +49 8153 405-11
Description
DIADEM produces high energy with femtosecond pulses, in a compact and robust format. Offering one of the World’s lowest cost of ownership, high precision and ease of integration, DIADEM is ideally suited for industrial applications such as very accurate & qualitative micron-scaled features drilling/cutting used in a wide variety of industrial market segments. It also suits perfect for optogenetic applications.
The average powers from 10 W to 30 W are available as standard. Higher average powers are available on request. It maintains a maximum puls energy off 30 µJ (optional 40 µJ).
Specifications:
|
Model |
DIADEM IR-10** |
DIADEM IR-20** |
DIADEM IR-30** |
|
Wavelength |
1030 nm or 1060 nm |
||
|
Spectral linewidth |
< 10 nm |
||
|
Pulse duration |
< 300 fs |
||
|
Repetition rate |
Single pulse to 2 MHz (with burst mode) - 10 MHz optional |
||
|
M² |
< 1.2 |
||
|
Beam waist diameter |
2 mm |
||
|
Beam divergence |
< 1 mrad |
||
|
Beam pointing |
< 25 µrad/°C |
||
|
Ellipticity |
> 0.85 |
||
|
Warm-uptime |
< 15 min |
||
|
Power stability |
< 2% RMS |
||
|
Pulse stability |
< 2% RMS |
||
|
Polarization |
Linear, > 100:1 |
||
|
External Interfaces |
High speed external synchronization (Sync.Out/ In), communication through USB, RS232,TCP/IP |
||
|
Software interfaces |
Intuitive GUI, serial communication protocol |
||
|
Laser head dimensions(mm3)- Weight |
531 x 342 x 143 mm – 17 kg |
||
|
Laser controller dimensions |
19”/3U rack - 7.5 kg |
||
|
Standard cable length |
3 m |
||
|
Power consumption |
100 to 240 VAC < 400 W |
||
|
Cooling |
Air cooled |
||
|
OPTION |
Possibility to convert in the harmonics and electronically switch thanks to an external module (IR/GR or IR/GR/UV) |
||
|
Tunable pulse duration from < 300 fs up to 10 ps |
|||
* Specifications subject to change without notice.
**Other wavelengths and higher power available upon request
Laser 2000 GmbH is the exclusive distributor of Spark Lasers in Germany, Austria, Nordics and Iberia.
