Reference number: SPK-Altair

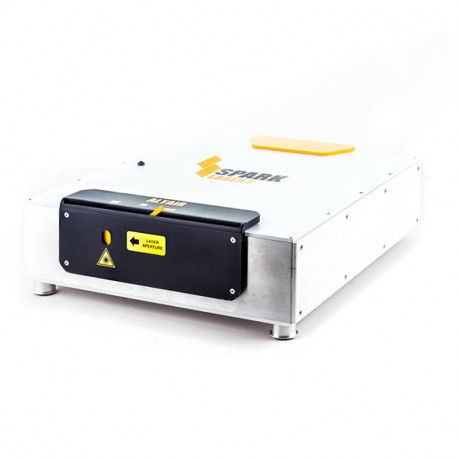

The ALTAIR series ultrafast lasers produce high average power at ultra short pulses in a compact and robust format.
Need more info?
Contact our expert.
Laser & Light Sources Team
Phone: +49 8153 405-11
Description
The ALTAIR series delivers high average power with ultra-short femtosecond pulses (up to <100 fs) at high repetition rates (80 MHz). The ALTAIR series is ideal for multiphoton applications, neuroscience, optogenetics and THz generation.
Specifications:
|
Model |
ALTAIR Series |
|||
|
Average power |
1 W |
5 W |
10 W |
20 W |
|
Wavelength |
1040 nm (optional: 920, 1030 - 1064 nm) |
|||
|
Pulse duration |
< 160 fs |
others optional |
||
|
Repetition rate |
80 MHz |
20 MHz or 80 MHz |
||
|
M² |
< 1.2 |
|||
|
Beam Taille Diameter |
1 mm |
|||
|
Pointing Stability |
< 25 µrad/°C |
|||
|
Ellipticity |
> 0.9 |
|||
|
Warm-Up time |
< 5 min |
|||
|
Power stability |
< 1% RMS |
|||
|
RMS Noise |
< 1% RMS |
|||
|
Polarization |
Linear, > 100:1 |
|||
External Interfaces |
External High Speed Synchronization (Sync.Out), |
|||
Software |
Intuitive User Interface, serial Communication protocol |
|||
Dimensions Head |
397 x 339 x 131 mm3 – 13 kg |
|||
|
Dimensions Controller |
19”/3U Rack –7,5 kg |
|||
|
Cable length |
3 m |
|||
Power |
100 to 240VAC <400 W |
|||
|
Cooling |
Air |
|||
OPTIONS |
GDD: Group Dispersion Delay Pre Compensation (-30000 fs²). |
|||
|
SHG & THG |
||||
|
F-SYNC: Fine tuning of PRF synchronization +/- 1 MHz |
||||
Laser 2000 GmbH is the exclusive distributor of Spark Lasers in Germany, Austria, Nordics and Iberia.
