Turnkey Laser Module for Raman-Spectroscopy

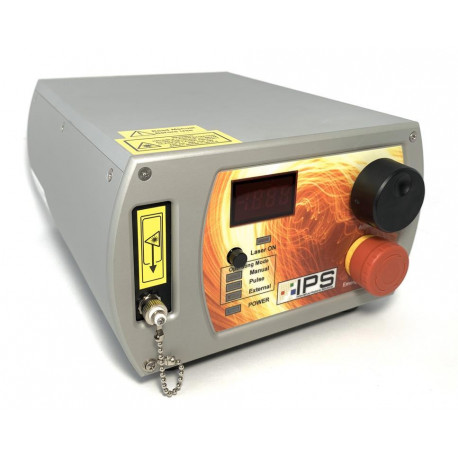

Multi-Mode Fiber Coupled Turn-Key Laser Module
search
  • Multi-Mode Fiber Coupled Turn-Key Laser Module
  • Multi-Mode Fiber Coupled Turn-Key Laser Module
-->

Reference number: IPS-M-Type

Wavelength stabilized turnkey fiber coupled laser module from Innovative Photonics Solution features high output power with narrow spectral bandwidth ideal for applications like Raman spectroscopy.

alt

Need more info?
Contact our expert.

Laser & Light Sources Team
Phone: +49 8153 405-11

Description

Multi-Mode Fiber Coupled Raman Laser with narrow spectral bandwidth

The wavelength-stabilized SLM lasers from Innovative Photonic Solution deliver high output power with an ultra narrow spectral line width and diffraction-limited beam parameters. In a convenient turnkey design, the module is ideal for laboratory applications.

Insensitive to vibrations and other external effects the Lasers reach highest requirements for narrow bandwidth and wavelength stability and are perfectly fit for application like Raman spectroscopy.

  • Wavelength Stabilized Spectrum
  • High Power Multi-Mode Fiber Coupled Output
  • Power adjustable
  • UL/CE and IEC Certified
  • Turn-Key Operation
  • Narrow Spectral Linewidth (<0.1 nm FWHM)
  • USB Connectivity with dual port USB hub
  • 40 dB SMSR Typical


Available Wavelengths (custom wavelength available on request)

Wavelength [nm]

Power Output [mW]

638

300

680

300

785

350, 500

808

350, 500

830

350, 500

1064

500
