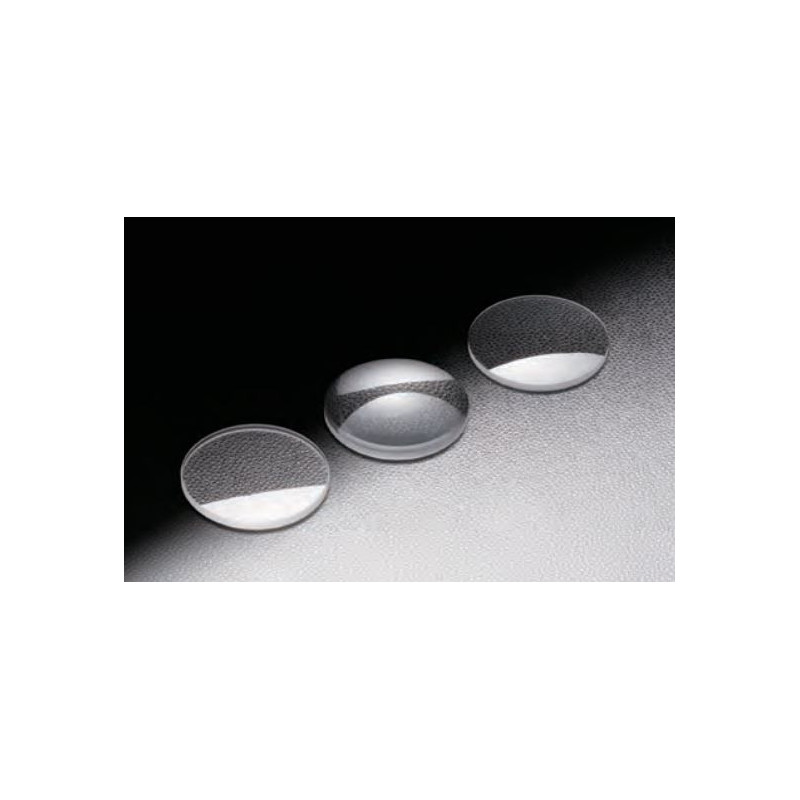

Planoconvex Lens, Uncoated, SiO2
Reference number: OSE-SLSQ-05-08P
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
These simple plano-convex lenses have a flat surface on one side and a spherical surface on the other side. They are also very close to the shape that minimizes spherical aberration for infinite conjugate applications
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Shape: round
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 8
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 6.3
- Curvature radius r [mm]: 3.68
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 9
- Edge thickness te [mm]: 1.4
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 7.6
- Curvature radius r [mm]: 4.14
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 10
- Edge thickness te [mm]: 1.4
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 8.6
- Curvature radius r [mm]: 4.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 12
- Edge thickness te [mm]: 1.3
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: 10.7
- Curvature radius r [mm]: 5.52
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 15
- Edge thickness te [mm]: 1.2
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: 13.8
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 20
- Edge thickness te [mm]: 1.2
- Center thickness tc [mm]: 1.5
- Back focal length fb [mm]: 19
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 30
- Edge thickness te [mm]: 1.1
- Center thickness tc [mm]: 1.3
- Back focal length fb [mm]: 29.1
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 8
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 6.3
- Curvature radius r [mm]: 3.68
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 10
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 8.6
- Curvature radius r [mm]: 4.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 12
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: 10.7
- Curvature radius r [mm]: 5.52
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 15
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: 13.8
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 20
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.5
- Back focal length fb [mm]: 19
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 25
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.4
- Back focal length fb [mm]: 24
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 30
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.3
- Back focal length fb [mm]: 29.1
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 10
- Edge thickness te [mm]: 2.2
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: 7.4
- Curvature radius r [mm]: 4.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 12
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 9.8
- Curvature radius r [mm]: 5.52
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 15
- Edge thickness te [mm]: 1.8
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 13.1
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 20
- Edge thickness te [mm]: 1.7
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 18.3
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 30
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 28.6
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 40
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: 38.7
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 50
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: 48.7
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 10
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: 7.4
- Curvature radius r [mm]: 4.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 12
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 9.8
- Curvature radius r [mm]: 5.52
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 15
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 13.1
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 20
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 18.3
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 25
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: 23.5
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 30
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 28.6
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 15
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.1
- Back focal length fb [mm]: 12.2
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 20
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: 17.6
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 25
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 22.8
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 30
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 28
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 40
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 38.2
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 50
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: 48.3
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 60
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 58.3
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 68.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 78.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 98.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 20
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.9
- Back focal length fb [mm]: 16
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 25
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.8
- Back focal length fb [mm]: 21.7
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 30
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: 27.1
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 40
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: 37.5
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 50
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: 47.8
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 60
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 57.9
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 68
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 78.1
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 90
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 88.2
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: 98.3
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 25
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.8
- Back focal length fb [mm]: 19.6
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 30
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.3
- Back focal length fb [mm]: 25.7
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 40
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 36.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 50
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.3
- Back focal length fb [mm]: 47.1
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 60
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 57.3
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: 67.5
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.4
- Back focal length fb [mm]: 77.7
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 90
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 87.8
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 97.9
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 120
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 118
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 150
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 148.1
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 170
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: 168.2
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 200
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 198.3
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 30
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 10
- Back focal length fb [mm]: 23.2
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 35
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 8
- Back focal length fb [mm]: 29.6
- Curvature radius r [mm]: 16.1
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 40
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.9
- Back focal length fb [mm]: 35.3
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 50
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 46.1
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 60
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 56.6
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 66.9
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: 77.1
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 90
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 87.3
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 97.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 120
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.4
- Back focal length fb [mm]: 117.6
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 150
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 147.8
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 170
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 167.9
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 200
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 198
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 220
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 218.1
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 250
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 248.2
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 30
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 10
- Back focal length fb [mm]: 23.2
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 35
- Edge thickness te [mm]: 1.8
- Center thickness tc [mm]: 8
- Back focal length fb [mm]: 29.5
- Curvature radius r [mm]: 16.1
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 40
- Edge thickness te [mm]: 1.8
- Center thickness tc [mm]: 6.9
- Back focal length fb [mm]: 35.3
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 50
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 46.1
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 60
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 56.6
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 70
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 66.9
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 80
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: 77.1
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 90
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 87.3
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 100
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 97.5
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 150
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 147.9
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 200
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 198
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 250
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 248.2
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 300
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 298.3
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 400
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 398.4
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 500
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 498
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 1000
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 998.6
- Curvature radius r [mm]: 460
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 35
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 12.3
- Back focal length fb [mm]: 26.6
- Curvature radius r [mm]: 16.1
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 40
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 9.7
- Back focal length fb [mm]: 33.3
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 50
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.6
- Back focal length fb [mm]: 44.8
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 60
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 55.6
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 66.1
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.2
- Back focal length fb [mm]: 76.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 90
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.8
- Back focal length fb [mm]: 86.7
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 96.9
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 120
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.1
- Back focal length fb [mm]: 117.2
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 150
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 147.5
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 170
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: 167.6
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 200
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 197.8
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 220
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 217.9
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 250
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 248
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 300
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 298.1
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 350
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 348.2
- Curvature radius r [mm]: 161
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 400
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: 398.2
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 450
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 448.3
- Curvature radius r [mm]: 207
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 500
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 498.3
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 600
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 598.4
- Curvature radius r [mm]: 276
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 700
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 698.4
- Curvature radius r [mm]: 322
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 800
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 798.4
- Curvature radius r [mm]: 368
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 900
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 898.4
- Curvature radius r [mm]: 414
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 1000
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: 998.5
- Curvature radius r [mm]: 460
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 1200
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: 1198.5
- Curvature radius r [mm]: 552
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 1500
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: 1498.5
- Curvature radius r [mm]: 690
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 2000
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 1998.5
- Curvature radius r [mm]: 920
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 2500
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 2498.6
- Curvature radius r [mm]: 1150
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 3000
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 2998.6
- Curvature radius r [mm]: 1380
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 4000
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 3998.6
- Curvature radius r [mm]: 1840
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 5000
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 4998.6
- Curvature radius r [mm]: 2300
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 50
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 13.6
- Back focal length fb [mm]: 40.7
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 60
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 10.6
- Back focal length fb [mm]: 52.8
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 9
- Back focal length fb [mm]: 63.9
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.9
- Back focal length fb [mm]: 74.6
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 90
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.2
- Back focal length fb [mm]: 85.1
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.6
- Back focal length fb [mm]: 95.5
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 120
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.8
- Back focal length fb [mm]: 116.1
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 150
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 146.6
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 170
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.6
- Back focal length fb [mm]: 166.8
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 200
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: 197.1
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 220
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4
- Back focal length fb [mm]: 217.3
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 250
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: 247.4
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 300
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: 297.6
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 350
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 347.8
- Curvature radius r [mm]: 161
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 400
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 397.9
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 450
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 448
- Curvature radius r [mm]: 207
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 500
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 498
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 70
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 14.9
- Back focal length fb [mm]: 59.8
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 80
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 12.8
- Back focal length fb [mm]: 71.2
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 90
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 11.4
- Back focal length fb [mm]: 82.2
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 100
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 10.4
- Back focal length fb [mm]: 92.9
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 120
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 9
- Back focal length fb [mm]: 113.8
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 150
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7.7
- Back focal length fb [mm]: 144.7
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 170
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7.1
- Back focal length fb [mm]: 165.1
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 200
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.5
- Back focal length fb [mm]: 195.6
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 220
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.1
- Back focal length fb [mm]: 215.8
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 250
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.8
- Back focal length fb [mm]: 246.1
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 300
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.3
- Back focal length fb [mm]: 296.4
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 350
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 346.6
- Curvature radius r [mm]: 161
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 400
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 4.7
- Back focal length fb [mm]: 396.8
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 450
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 446.9
- Curvature radius r [mm]: 207
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 500
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 4.4
- Back focal length fb [mm]: 497
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 600
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 4.1
- Back focal length fb [mm]: 597.2
- Curvature radius r [mm]: 276
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 700
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 4
- Back focal length fb [mm]: 697.3
- Curvature radius r [mm]: 322
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 800
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 797.4
- Curvature radius r [mm]: 368
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 900
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: 897.4
- Curvature radius r [mm]: 414
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 1000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 997.5
- Curvature radius r [mm]: 460
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 1200
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: 1197.6
- Curvature radius r [mm]: 552
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 1500
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: 1497.6
- Curvature radius r [mm]: 690
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 2000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: 1997.7
- Curvature radius r [mm]: 920
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 2500
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: 2497.8
- Curvature radius r [mm]: 1150
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 3000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 2997.8
- Curvature radius r [mm]: 1380
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 4000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 3997.8
- Curvature radius r [mm]: 1840
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 5000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 4997.9
- Curvature radius r [mm]: 2300
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 70
- Edge thickness te [mm]: 2.5
- Center thickness tc [mm]: 14.9
- Back focal length fb [mm]: 59.8
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 80
- Edge thickness te [mm]: 2.6
- Center thickness tc [mm]: 12.8
- Back focal length fb [mm]: 71.2
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 90
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 11.4
- Back focal length fb [mm]: 82.2
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 100
- Edge thickness te [mm]: 2.8
- Center thickness tc [mm]: 10.4
- Back focal length fb [mm]: 92.9
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 120
- Edge thickness te [mm]: 2.8
- Center thickness tc [mm]: 9
- Back focal length fb [mm]: 113.8
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 150
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 7.7
- Back focal length fb [mm]: 144.7
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 170
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 7.1
- Back focal length fb [mm]: 165.1
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 200
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 6.5
- Back focal length fb [mm]: 195.6
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 250
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 246.1
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 300
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 5.3
- Back focal length fb [mm]: 296.4
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 400
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 4.7
- Back focal length fb [mm]: 396.8
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 500
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 4.4
- Back focal length fb [mm]: 497
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 1000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 997.5
- Curvature radius r [mm]: 460
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 80
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 18.5
- Back focal length fb [mm]: 67.3
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 90
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 15.9
- Back focal length fb [mm]: 79.1
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 100
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 14.1
- Back focal length fb [mm]: 90.3
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 120
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 11.9
- Back focal length fb [mm]: 111.9
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 150
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 9.9
- Back focal length fb [mm]: 143.2
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 170
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 9
- Back focal length fb [mm]: 163.8
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 200
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 8
- Back focal length fb [mm]: 194.5
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 220
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7.5
- Back focal length fb [mm]: 214.8
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 250
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7
- Back focal length fb [mm]: 245.2
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 300
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.3
- Back focal length fb [mm]: 295.7
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 350
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.8
- Back focal length fb [mm]: 346
- Curvature radius r [mm]: 161
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 400
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.5
- Back focal length fb [mm]: 396.3
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 450
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.2
- Back focal length fb [mm]: 446.5
- Curvature radius r [mm]: 207
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø60
- Focal length f [mm]: 500
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 496.6
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 200
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 17.8
- Back focal length fb [mm]: 187.8
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 250
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 14.4
- Back focal length fb [mm]: 240.1
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 300
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 12.4
- Back focal length fb [mm]: 291.5
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 350
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 11
- Back focal length fb [mm]: 342.5
- Curvature radius r [mm]: 161
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 400
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 9.9
- Back focal length fb [mm]: 393.2
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 500
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 8.5
- Back focal length fb [mm]: 494.2
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 600
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7.6
- Back focal length fb [mm]: 594.8
- Curvature radius r [mm]: 276
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 700
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.9
- Back focal length fb [mm]: 695.3
- Curvature radius r [mm]: 322
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 800
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 795.6
- Curvature radius r [mm]: 368
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Convex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø100
- Focal length f [mm]: 1000
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 995.1
- Curvature radius r [mm]: 460
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
