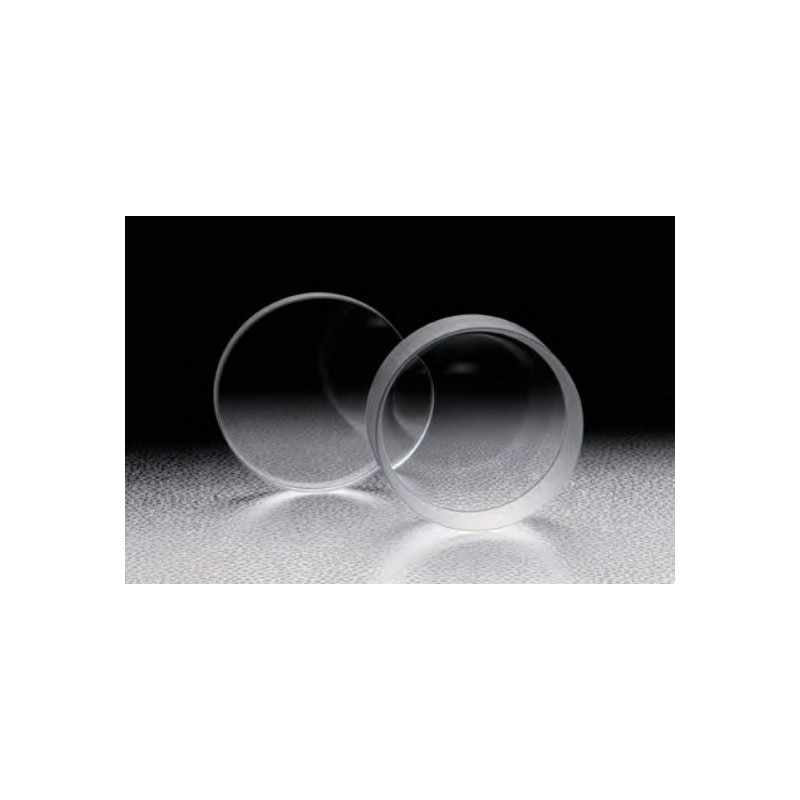

Planoconcave Lens, Uncoated, SiO2
Reference number: OSE-SLSQ-10-15N
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
These simple negative lenses alone form a virtual image of a distant object or a collimated light source. In combination with other optics they reduce the power of the system.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Shape: round
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -15
- Edge thickness te [mm]: 4.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -16.4
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -20
- Edge thickness te [mm]: 3.5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -21.4
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -25
- Edge thickness te [mm]: 3.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -26.4
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -30
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -40
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -50
- Edge thickness te [mm]: 2.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -60
- Edge thickness te [mm]: 2.5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -70
- Edge thickness te [mm]: 2.4
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -80
- Edge thickness te [mm]: 2.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -81.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -90
- Edge thickness te [mm]: 2.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -91.4
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: -100
- Edge thickness te [mm]: 2.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -20
- Edge thickness te [mm]: 5.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -21.4
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -25
- Edge thickness te [mm]: 4.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -26.4
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -30
- Edge thickness te [mm]: 4.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -40
- Edge thickness te [mm]: 3.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -50
- Edge thickness te [mm]: 3.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -60
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -70
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -80
- Edge thickness te [mm]: 2.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -81.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -90
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -91.4
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: -100
- Edge thickness te [mm]: 2.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -25
- Edge thickness te [mm]: 7.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -26.4
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -30
- Edge thickness te [mm]: 6.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -40
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -50
- Edge thickness te [mm]: 4.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -60
- Edge thickness te [mm]: 3.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -70
- Edge thickness te [mm]: 3.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -80
- Edge thickness te [mm]: 3.4
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -81.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -90
- Edge thickness te [mm]: 3.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -91.4
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -100
- Edge thickness te [mm]: 3.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -120
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -121.4
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: -150
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -151.4
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -30
- Edge thickness te [mm]: 10
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -35
- Edge thickness te [mm]: 8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -36.4
- Curvature radius r [mm]: 16.1
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -40
- Edge thickness te [mm]: 6.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -50
- Edge thickness te [mm]: 5.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -60
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -70
- Edge thickness te [mm]: 4.5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -80
- Edge thickness te [mm]: 4.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -81.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -90
- Edge thickness te [mm]: 3.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -91.4
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -100
- Edge thickness te [mm]: 3.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -120
- Edge thickness te [mm]: 3.4
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -121.4
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -150
- Edge thickness te [mm]: 3.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -151.4
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -170
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -171.4
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: -200
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -201.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -30
- Edge thickness te [mm]: 10.4
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -40
- Edge thickness te [mm]: 7.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -50
- Edge thickness te [mm]: 5.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -60
- Edge thickness te [mm]: 5.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -70
- Edge thickness te [mm]: 4.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -80
- Edge thickness te [mm]: 4.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -81.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -90
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -91.4
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -100
- Edge thickness te [mm]: 3.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -150
- Edge thickness te [mm]: 3.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -151.4
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: -200
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -201.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -35
- Edge thickness te [mm]: 12.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -36.4
- Curvature radius r [mm]: 16.1
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -40
- Edge thickness te [mm]: 9.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -50
- Edge thickness te [mm]: 7.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -60
- Edge thickness te [mm]: 6.4
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -70
- Edge thickness te [mm]: 5.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -80
- Edge thickness te [mm]: 5.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -81.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -90
- Edge thickness te [mm]: 4.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -91.4
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -100
- Edge thickness te [mm]: 4.5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -120
- Edge thickness te [mm]: 4.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -121.4
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -150
- Edge thickness te [mm]: 3.7
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -151.4
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -170
- Edge thickness te [mm]: 3.5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -171.4
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -200
- Edge thickness te [mm]: 3.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -201.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -220
- Edge thickness te [mm]: 3.1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -221.4
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: -250
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -251.4
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -50
- Edge thickness te [mm]: 13.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -51.4
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -60
- Edge thickness te [mm]: 10.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -61.4
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -70
- Edge thickness te [mm]: 9
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -71.4
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -100
- Edge thickness te [mm]: 6.6
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -101.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -120
- Edge thickness te [mm]: 5.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -121.4
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -150
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -151.4
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -200
- Edge thickness te [mm]: 4.2
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -201.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: -250
- Edge thickness te [mm]: 3.8
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -251.4
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -70
- Edge thickness te [mm]: 14.9
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -72.1
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -80
- Edge thickness te [mm]: 12.8
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -82.1
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -90
- Edge thickness te [mm]: 11.4
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -92.1
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -100
- Edge thickness te [mm]: 10.4
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -102.1
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -120
- Edge thickness te [mm]: 9
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -122.1
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -150
- Edge thickness te [mm]: 7.7
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -152.1
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -170
- Edge thickness te [mm]: 7.1
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -172.1
- Curvature radius r [mm]: 78.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -200
- Edge thickness te [mm]: 6.5
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -202.1
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -220
- Edge thickness te [mm]: 6.1
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -222.1
- Curvature radius r [mm]: 101.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -250
- Edge thickness te [mm]: 5.8
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -252.1
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: -300
- Edge thickness te [mm]: 5.3
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -302.1
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -70
- Edge thickness te [mm]: 15.4
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -72.1
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -80
- Edge thickness te [mm]: 13.2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -82.1
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -90
- Edge thickness te [mm]: 11.7
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -92.1
- Curvature radius r [mm]: 41.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -100
- Edge thickness te [mm]: 10.6
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -102.1
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -150
- Edge thickness te [mm]: 7.8
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -152.1
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -200
- Edge thickness te [mm]: 6.6
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -202.1
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -250
- Edge thickness te [mm]: 5.8
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -252.1
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: -300
- Edge thickness te [mm]: 5.4
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: -302.1
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
