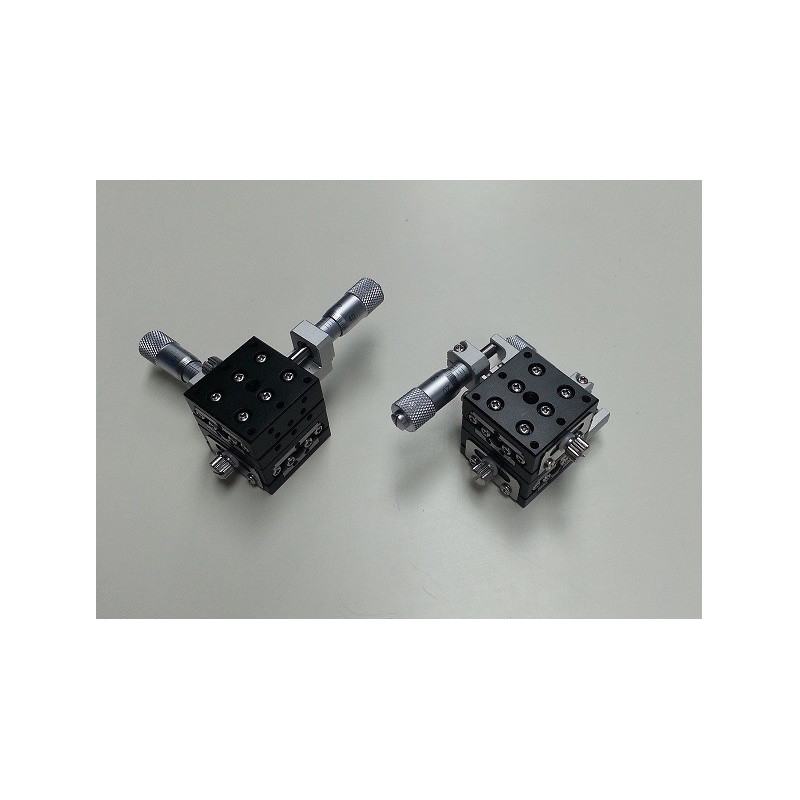

OSE-TADC-252W: XY axis, 25 x 25 mm

-->

Reference number: OSE-TADC-252WC

Version

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [± mm]: 3
Travel y-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 1.9
Max. Moment Capacity / Roll [Nm]: 1.9
Moment Stiffness / Pitch [´´/Ncm]: 4.5
Moment Stiffness / Roll [´´/Ncm]: 4.5
Parallelism [µm]: 60
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.1

Downloads

OSE-TADC-251_252W.pdf

OSE-TADC-252WC_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 1.9
Max. Moment Capacity / Roll [Nm]: 1.9
Max. Moment Capacity / Yaw [Nm]: 1.9
Moment Stiffness / Pitch [´´/Ncm]: 4.5
Moment Stiffness / Roll [´´/Ncm]: 4.5
Parallelism [µm]: 60
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.1

Downloads

OSE-TADC-251_252W.pdf

OSE-TADC-252WS_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 39.2
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 1.9
Max. Moment Capacity / Roll [Nm]: 1.9
Max. Moment Capacity / Yaw [Nm]: 1.9
Moment Stiffness / Pitch [´´/Ncm]: 4.5
Moment Stiffness / Roll [´´/Ncm]: 4.5
Parallelism [µm]: 60
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.1

Downloads

OSE-TADC-L.pdf

OSE-TADC-252WSR_STP.zip

ManualStages.zip

Actuators.pdf
