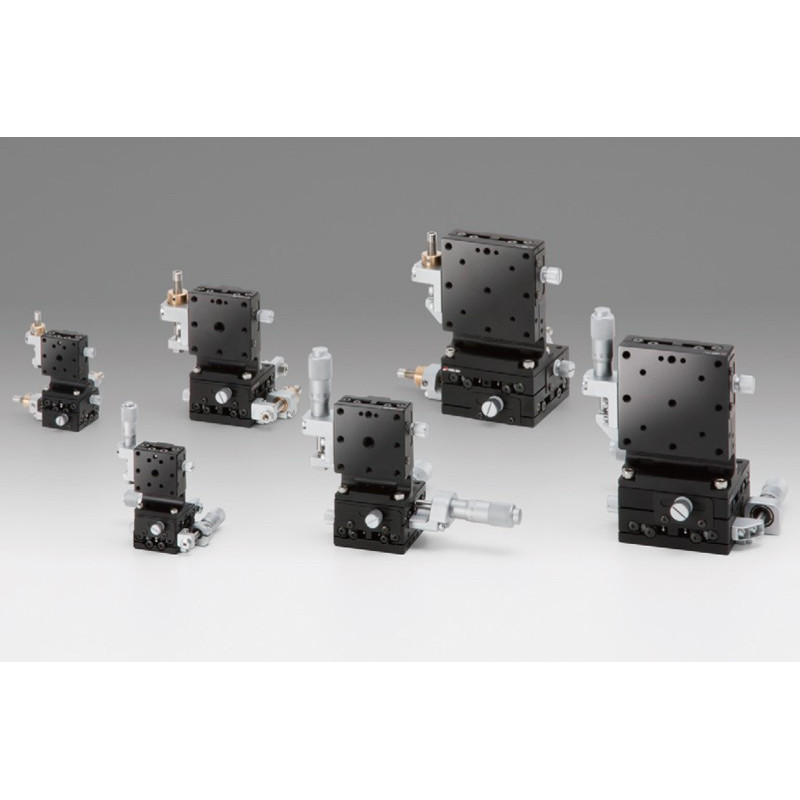

OSE-TSD-255L: XYZ axis, 25 x 25 mm

-->

Reference number: OSE-TSD-255CL

Model

Micrometer Position

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 2.2
Max. Moment Capacity / Roll [Nm]: 2.1
Moment Stiffness / Pitch [´´/Ncm]: 6.7
Gewicht in kg: 0.2

Downloads

OSE-TSD-255L_TSD-405L.pdf

OSE-TSD-255SL_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 2.2
Max. Moment Capacity / Roll [Nm]: 2.1
Moment Stiffness / Pitch [´´/Ncm]: 6.7
Gewicht in kg: 0.2

Downloads

OSE-TSD-255L_TSD-405L.pdf

OSE-TSD-255SRL_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 2.2
Max. Moment Capacity / Roll [Nm]: 2.1
Moment Stiffness / Pitch [´´/Ncm]: 6.7
Gewicht in kg: 0.2

Downloads

OSE-TSD-255L_TSD-405L.pdf

OSE-TSD-255CL_STP.zip

ManualStages.zip

Actuators.pdf
