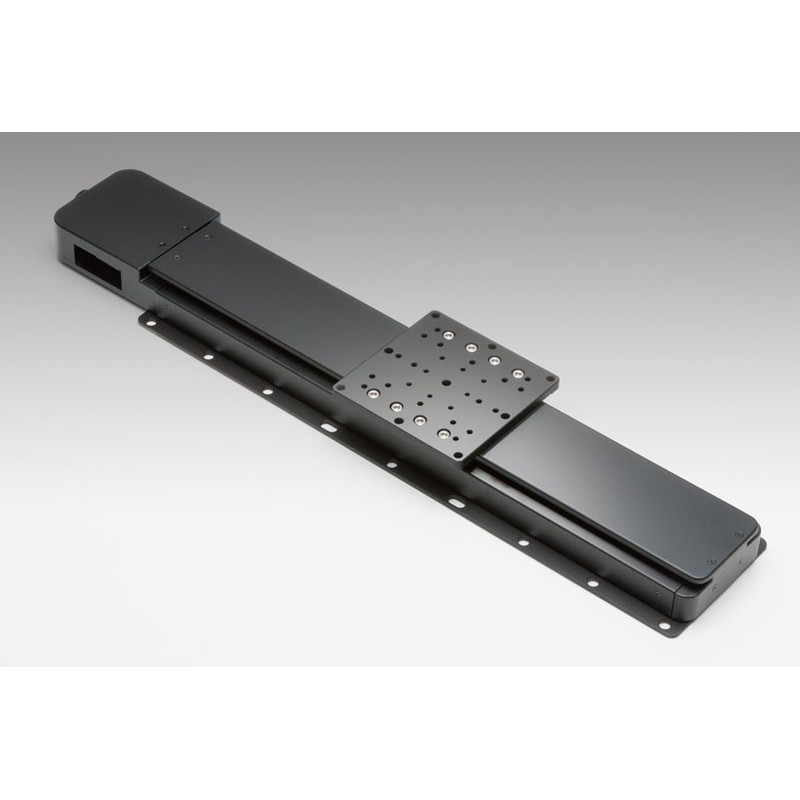

X Axes, 100 x 100 mm, Compact Scale

-->

Reference number: OSE-OSMS(CS)26-100(X)

Version

Travel in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Precision motorized stages with bult-in compact optical scales make highly accurate and relieable full closed loop system using controllers.

Travel [mm]: 100

Table Size [mm]: 100x100 (120x120)

Feed Screw: Ball screw diameter Ø8mm, 2mm lead

Positioning Slide: Outer rail structure

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 3.2

Resolution/(Full) [µm/pulse]: 4

Resolution/(Half) [µm/pulse]: 2

MAX Speed [mm/sec]: 40

Positioning Accuracy [µm]: 10

Positional Repeatability[µm]: 2

Load Capacity [N]: 117

Pitch [´´/N*cm]: 0.23

Yaw [´´/N*cm]: 0.12

Roll [´´/N*cm]: 0.2

Lost Motion [µm]: 3

Backlash [µm]: 3

Parallelism [µm]: 50

Running Parallelism [µm]: 10

Pitch [´´]/Yaw [´´]: 25/25

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped

Proximity Origin Sensor: Equipped

Scale Head / Resolution [µm]: 0.5

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK525HPB-C4 (28mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 80mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction)

Power Voltage / Current Consumption: DC5V±5% / 50mA

Driver Cable: D15D15A-CA

Scale Cable: GSEF-CA-3

Compatible Driver: -

Compatible Controller: SHOT-302GS, SHOT-304GS, HIT-M*HIT-S
