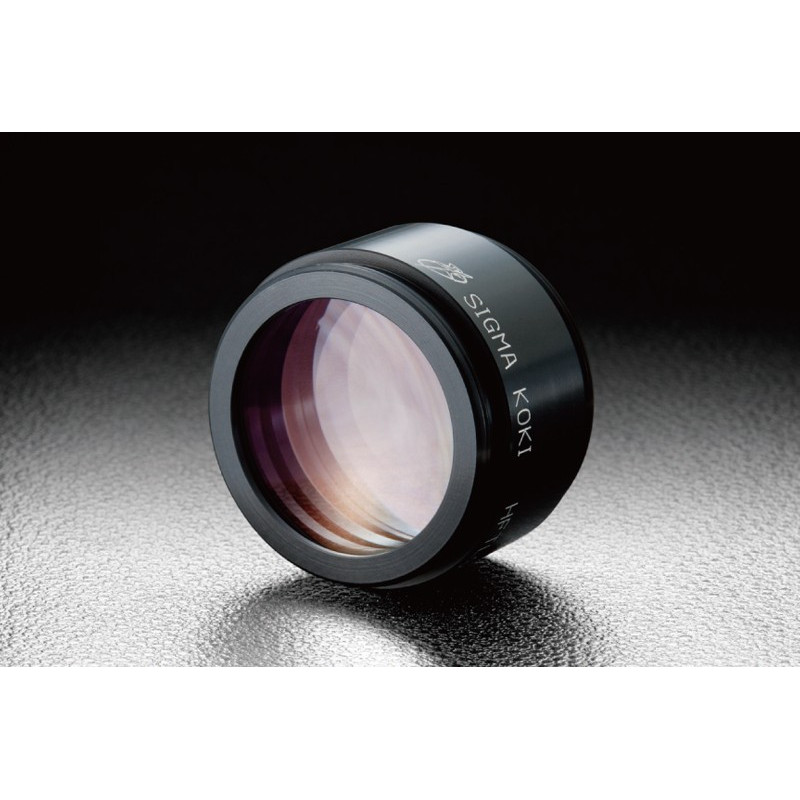

Focusing Lenses for Fiber Lasers, Triplets

-->

Reference number: OSE-HFTLSQ-30-40PF1

High power multi-element focusing lenses. Triplet Lenses.

Diameter in mm

Focal length in mm

Diameter in mm

Focal length in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Diameter D [mm]: 36
Focal length f [mm]: 40
Clear aperture ØDe [mm]: 27
Length L [mm]: 31
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M28 P0,75
Numerical aperture (NA): 0.34
Working distance (WD) [mm]: 24.9
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-30-40PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-30-40PF1_zmx_BB.zip

Diameter D [mm]: 36
Focal length f [mm]: 50
Clear aperture ØDe [mm]: 27
Length L [mm]: 28
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M28 P0,75
Numerical aperture (NA): 0.27
Working distance (WD) [mm]: 35.4
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-30-50PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-30-50PF1_zmx_BB.zip

Diameter D [mm]: 36
Focal length f [mm]: 60.1
Clear aperture ØDe [mm]: 27
Length L [mm]: 23
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Numerical aperture (NA): 0.22
Working distance (WD) [mm]: 51.4
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-30-60PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-30-60PF1_zmx_BB.zip

Diameter D [mm]: 36
Focal length f [mm]: 80
Clear aperture ØDe [mm]: 27
Length L [mm]: 23
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Numerical aperture (NA): 0.17
Working distance (WD) [mm]: 71.7
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-30-80PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-30-80PF1_zmx_BB.zip

Diameter D [mm]: 36
Focal length f [mm]: 100
Clear aperture ØDe [mm]: 27
Length L [mm]: 23
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Numerical aperture (NA): 0.14
Working distance (WD) [mm]: 92.7
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-30-100PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-30-100PF1_zmx_BB.zip

Diameter D [mm]: 54
Focal length f [mm]: 99.9
Clear aperture ØDe [mm]: 47
Length L [mm]: 35
Lens mounting thread Ma: M50,9 P0,75
Protective window thread Mb: -
Numerical aperture (NA): 0.24
Working distance (WD) [mm]: 84.2
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-50-100PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-50-100PF1_zmx_BB.zip

Diameter D [mm]: 24
Focal length f [mm]: 20
Clear aperture ØDe [mm]: 12
Length L [mm]: 16
Lens mounting thread Ma: M22 P0,75
Protective window thread Mb: M22 P0,75
Numerical aperture (NA): 0.3
Working distance (WD) [mm]: 13.7
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1,8
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-15-20PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-15-20PF1_zmx_BB.zip

Diameter D [mm]: 30
Focal length f [mm]: 30.3
Clear aperture ØDe [mm]: 17
Length L [mm]: 21
Lens mounting thread Ma: M28 P0,75
Protective window thread Mb: M28 P0,75
Numerical aperture (NA): 0.28
Working distance (WD) [mm]: 22
Material: Synthetic fused silica
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm
Coating: Broadband multil-ayer anti-reflection coating
Laser Damage Threshold [J/cm²] : 7
Acceptance angle [°]: ±1,2
Transmittance [%]: >98.5 (1060 - 1080nm), >97 (1040 - 1150nm), >53 (600 - 700nm)

Downloads

OSE-HFTLSQ-20-30PF1_STP.zip

OSE-HFTLSQ_HFDLSQ.pdf

Opt(ME-optics).zip

OSE-HFTLSQ-20-30PF1_zmx_BB.zip
