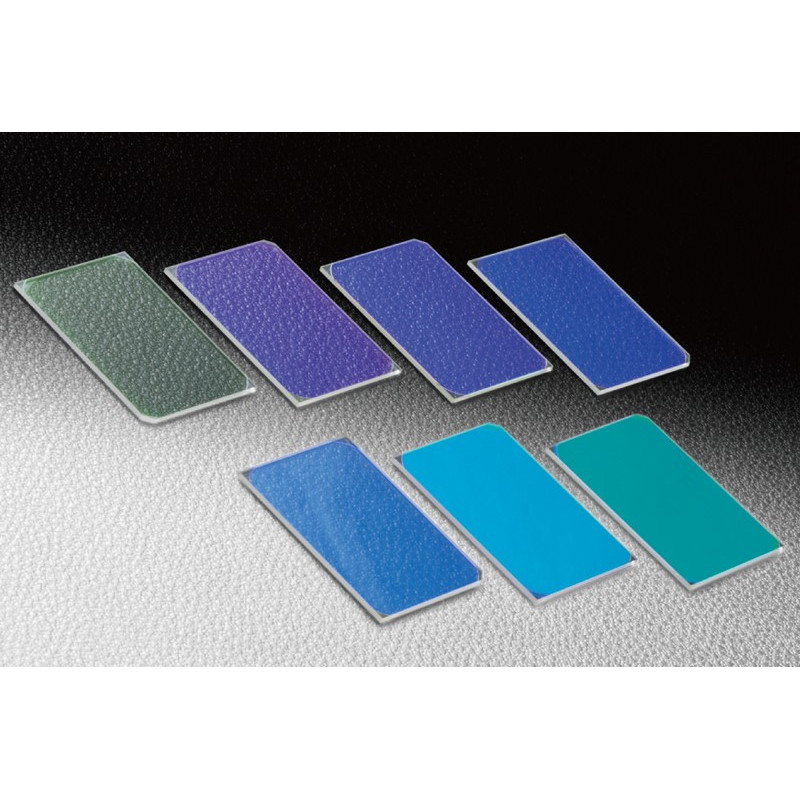

Sharp Cut Dichroic Mirrors

-->

Reference number: OSE-SDM410S

Divides sharply the color of wavelength by reflecting the short wavelength and transmitting the long wavelength.

Transition wavelength in nm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >Average 92, >Average 88

Transition [nm]: 455

High reflectance range [nm]: 390-443

Reflectance[%]: >99

High transmittance range: 465-560, 560-700

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >Average 90, >75

Transition [nm]: 490

High reflectance range [nm]: 450-482

Reflectance[%]: >99

High transmittance range: 499-630, 630-655

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >85, >60

Transition [nm]: 505

High reflectance range [nm]: 455-497

Reflectance[%]: >99

High transmittance range: 514-550, 550-700

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >Average 90, >75

Transition [nm]: 515

High reflectance range [nm]: 462-504

Reflectance[%]: >99

High transmittance range: 522-660, 660-700

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >85, >60

Transition [nm]: 570

High reflectance range [nm]: 520-558

Reflectance[%]: >99

High transmittance range: 579-620, 620-700

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >92, >75

Transition [nm]: 595

High reflectance range [nm]: 520-585

Reflectance[%]: >99

High transmittance range: 605-700, 700-880

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf

Surface Quality: 40-20

Material: Synthetic fused silica

Transmittance [%]: >80, >87

Transition [nm]: 410

High reflectance range [nm]: 340-360, 360-395

Reflectance[%]: >90, >99

High transmittance range: 419-660, 430-520

Incident angle: 45°

Parallelism: 20?

Downloads

OSE-sdm.pdf
