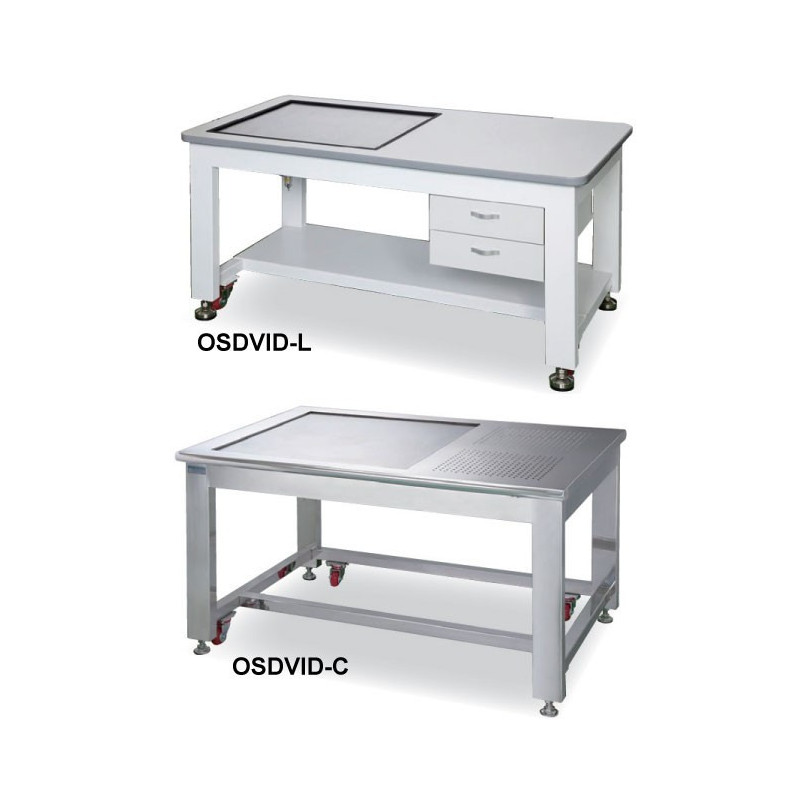

Desk Style Vibration Isolation Systems, L-Series

-->

Reference number: OSE-OSDVID-L-0405-L/R600

L-type for the laboratory.

Dimensions in mm

Dimensions in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 500x600
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 126

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 700x700
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 183

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 800x600
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 178

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 800x800
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 203

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 900x600
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 192

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 900x700
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 207

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 900x900
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 235

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 1,000x700
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 219

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 1,200x700
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 245

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 1,200x800
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 266

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 1,500x800
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 313

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf

Type: Small Table with Substructure
Natural Frequency: 1.2Hz - 2.0Hz
Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
Levelling Repeatability: ±1.0mm / ±0.05mm
Net Load Capacity: 500kg
Shipping Weight: 150 - 250kg
Material: Frame & Top: All Stainless Steel (C Type) Steel tube, Powder Painted (L Type) Top: Stainless Steel (C Type) Melamine H.P.Boards (L Type)
Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
W x D [mm] : 400x500
H [mm] : 800
Load capacity [kg]: 500
Weight [kg]: 103

Downloads

OSE-OSDVID.pdf

Bases_small.zip

OSE_Optische_Tische_1812.pdf
