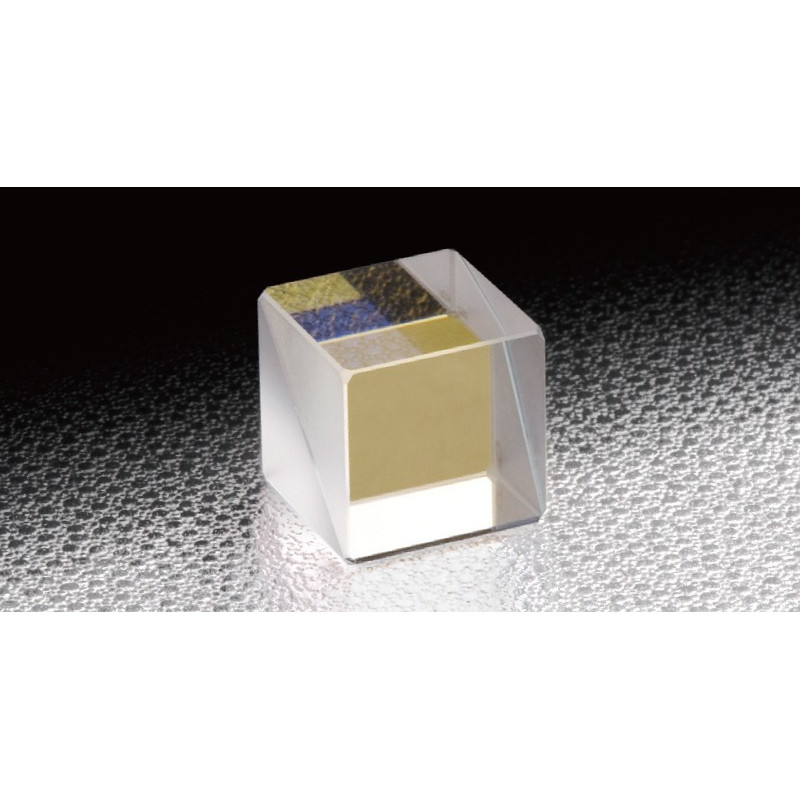

Polarizing Beamsplitters

-->

Reference number: OSE-PBS-10-4050

Polarizing beamsplitters split a monochromatic beam entering at zero degree into p-polarization as transmitted and s-polarization as reflected radiation.

Wavelength Range in nm

A-B-C in mm (400 - 700 nm)

Wavelength Range in nm

A-B-C in mm (400 - 700 nm)

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >90
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Wavelength Range [nm]: 405
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >90
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-4050_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 405
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >90
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-4050_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 405
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >90
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-4050_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 441.6
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-4416_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 441.6
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-4416_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 441.6
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-4416_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 457.9
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-4579_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 457.9
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-4579_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 457.9
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-4579_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 488
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-4880_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 488
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-4880_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 488
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-4880_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-5320_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 532
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-5320_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 632.8
A=B=C [mm]: 5
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-5-6328_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 632.8
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-6328_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 632.8
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 632.8
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-6328_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 632.8
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-6328_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 670
A=B=C [mm]: 5
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-5-6700_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 670
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-6700_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 670
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 670
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-6700_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 670
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-6700_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 780
A=B=C [mm]: 5
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-5-7800_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 780
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-7800_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 780
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 780
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-7800_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 780
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-7800_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 830
A=B=C [mm]: 5
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-5-8300_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 830
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-8300_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 830
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 830
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-8300_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 830
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >98
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-8300_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1064
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-10640_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1064
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-10640_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1064
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-10640_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1550
A=B=C [mm]: 5
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-5-15500_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1550
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-10-15500_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1550
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1550
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-15-15500_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip

Wavelength Range [nm]: 1550
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >97
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBS-20-15500_STP.zip

OSE-PBS.pdf

PBS.xls

Opt_Polarizers_.zip
