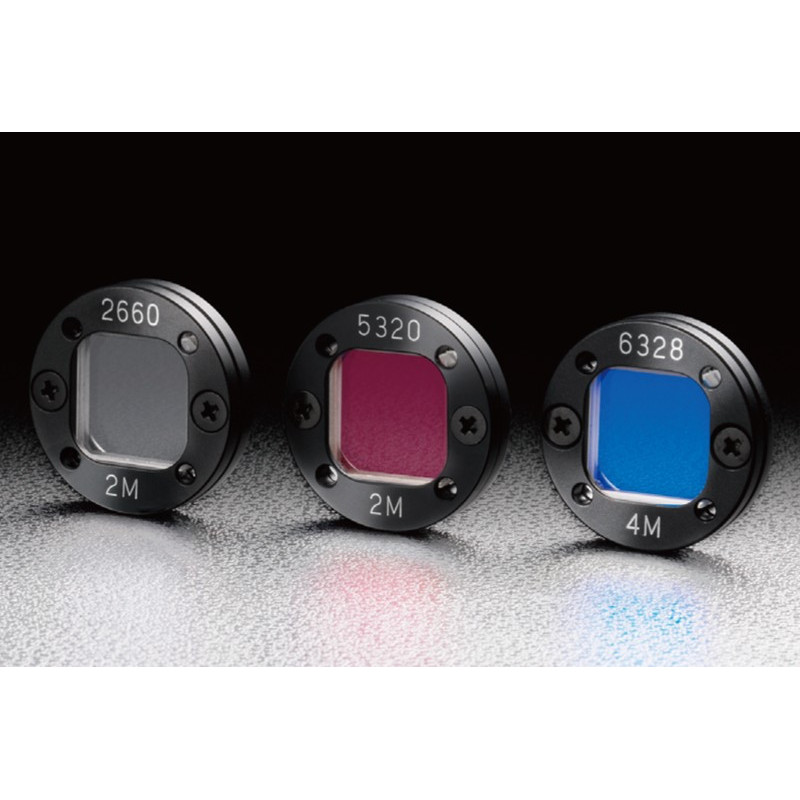

Quartz Waveplates

-->

Reference number: OSE-WPQ-2660-2M

Quartz waveplates are zero-order retardation plates composed of pairs of optically contacted crystalline quartz plates mounted on aluminum frames.

Wavelength Range in nm

Phase Difference (1064 nm)

Wavelength Range in nm

Phase Difference (1064 nm)

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2

Wavelength Range [nm]: 266
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 133
Retardation tolerance: < λ/50

Downloads

Wavelength Range [nm]: 325
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 162.5
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3250-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 355
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 177.5
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3550-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 405
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 202.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4050-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 410
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 205
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4100-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 441.6
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 220.8
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4416-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 457.9
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 229
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4579-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 488
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 244
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4880-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 514.5
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 257.3
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5145-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 532
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 266
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5320-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 632.8
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 316.4
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6328-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 670
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 335
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6700-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 780
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 390
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-7800-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 830
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 415
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-8300-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1064
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 532
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-10640-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1300
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 650
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-13000-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1550
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 775
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-15500-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 266
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 66.5
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-2660-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 325
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 81.3
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3250-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 355
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 88.8
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3550-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 405
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 101.3
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4050-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 410
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 102.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4100-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 441.6
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 110.4
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4416-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 457.9
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 114.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4579-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 488
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 122
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4880-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 514.5
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 128.6
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5145-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 532
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 133
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5320-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 632.8
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 158.2
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6328-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 670
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 167.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6700-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 780
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 195
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-7800-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 830
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 207.5
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-8300-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1064
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 266
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-10640-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1300
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 325
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-13000-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1550
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 387.5
Retardation tolerance: λ/200 - λ/500
