Reference number: OSE-WPM-10-2P

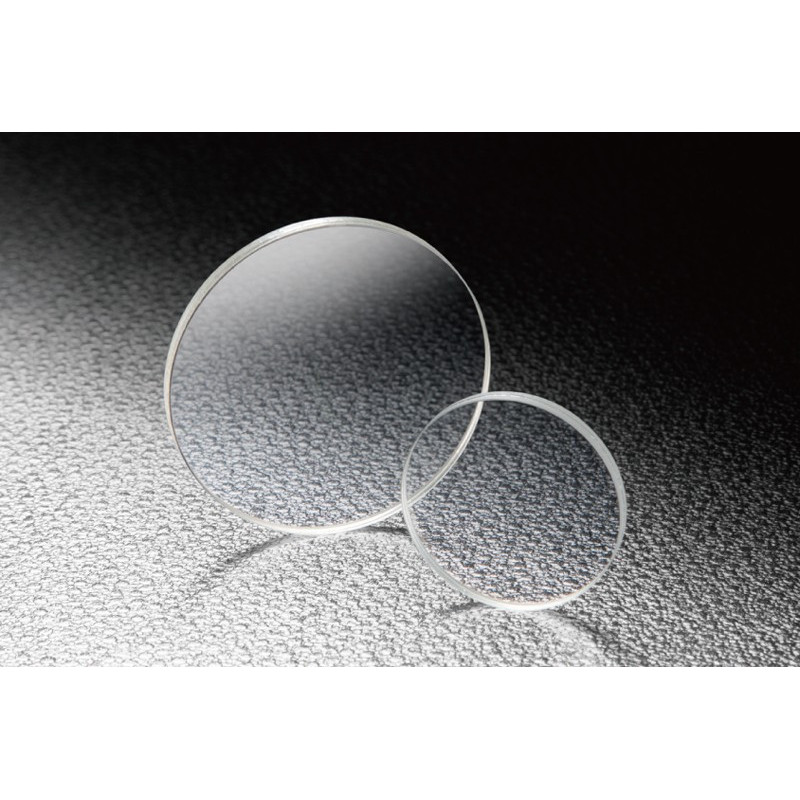

Mica waveplates are zero-order retardation plates designed for a wavelength of 550 nm and effective from 400 - 700 nm.

Wavelength Range in nm
Phase Difference (1064 nm)
Diameter in mm
Wavelength Range in nm
Phase Difference (1064 nm)
Diameter in mm
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: A mica sheet is sandwiched between optical glass discs for protection and ease of use.
  • Incident angle [ ° ]: 0
  • Surface Quality (Scratch - Dig): 40-20
  • Theoretical retardation [nm]: 290
  • Transmitted wavefront distortion: 2λ λ=550nm
  • Thickness t [mm]: 2.5
  • Design wavelenght [nm]: 580
