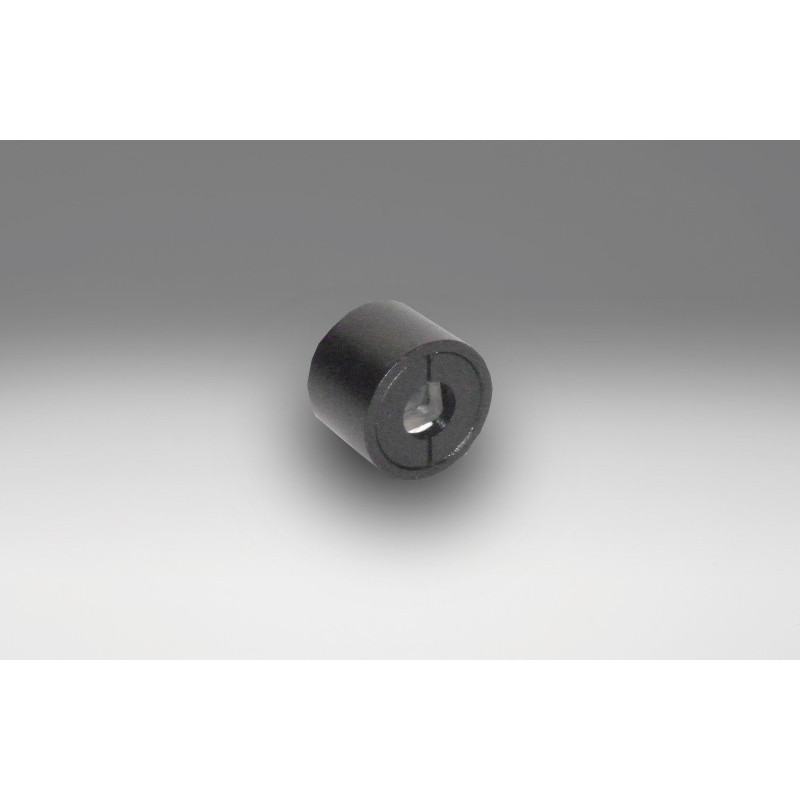

Glan Laser Prisms, Calcite

search
-->

Reference number: OSE-GLP2-06-21SN

Glan Laser Polarizers are designed to provide enhanced laser damage threshold for high power lasers and high energy laser pulses. Calcite can be used in the visible to infrared range.

Wavelength Range in nm
Diameter A in mm
Wavelength Range in nm
Diameter A in mm
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: Calcite
  • Material of frame: Aluminum Finishing: Black anodized
  • Laser Damage Threshold [J/cm² ]: 2
  • Surface flatness of substrate: λ/4
  • Beam Deviation: <3
  • Coating: MgF2 Single-layer anti-reflection coating
  • Surface Quality (Scratch - Dig): 20-10
