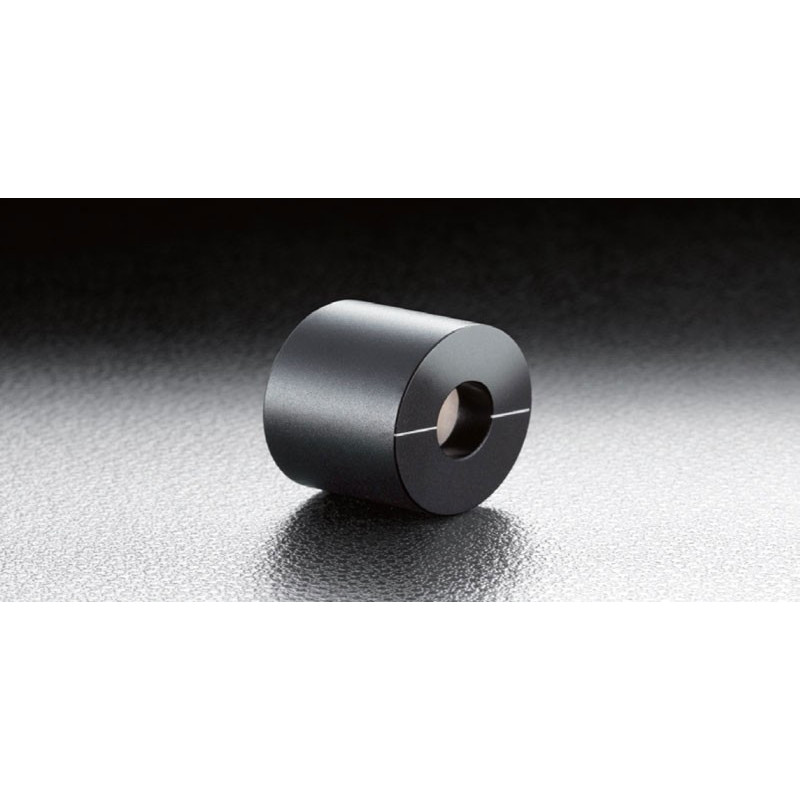

Glan Taylr Prisms, Calcite

search
-->

Reference number: OSE-GYPC-06-15SN

Transmission loss is minimal, and a high extinction ratio below5x10^-5 is claimed. Calcite can be used in the visible to infrared range.

Wavelength Range in nm
Diameter A in mm
Wavelength Range in nm
Diameter A in mm
alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: Calcite
  • Material of frame: Aluminum Finishing: Black anodized
  • Laser Damage Threshold [J/cm² ]: 1
  • Surface flatness of substrate: λ/4
  • Beam Deviation: <3
  • Coating: MgF2 Single-layer anti-reflection coating
  • Surface Quality (Scratch - Dig): 20-10
