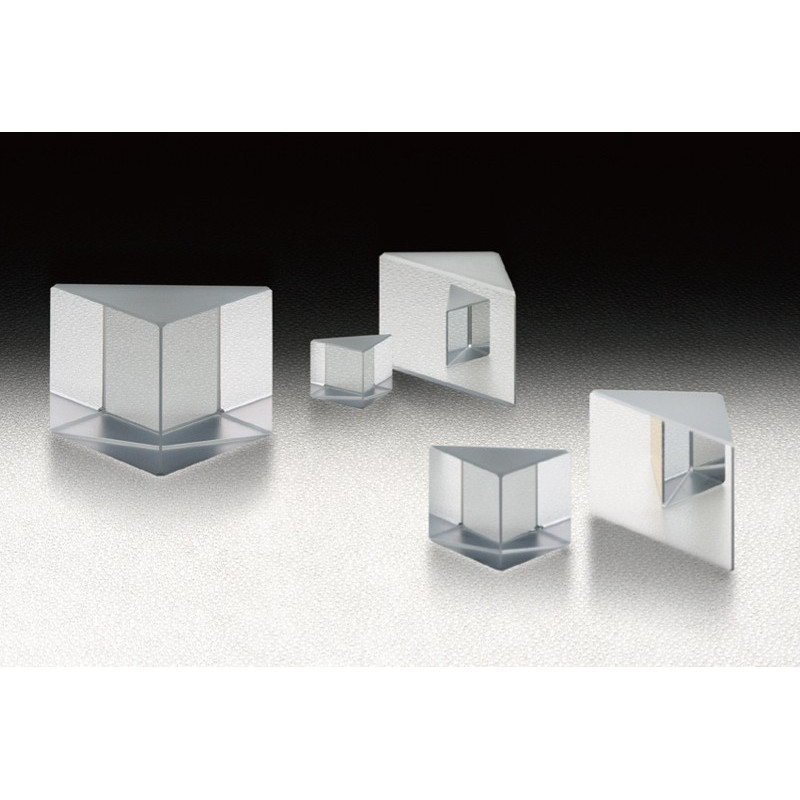

Right Angle Prisms, SiO2

-->

Reference number: OSE-RPSQ-05-2L

Rectangular prisms that are not coated can be used in various applications, such as total internal reflection critical angle and wavelength dispersion.

Surface Flatness

A - B in mm

Surface Flatness

A - B in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Material: Synthetic fused silica
Refractive index nd: 1.458
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-05-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-07-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-10-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 15
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-15-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 20
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-20-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 25
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-25-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 30
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-30-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 40
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-40-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 50
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´

Downloads

OSE-RPSQ-50-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-05-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-07-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-10-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 15
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-15-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 20
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-20-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 25
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-25-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 30
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-30-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-05-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-07-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-10-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 15
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-15-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 20
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-20-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 25
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-25-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 30
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±30´´

Downloads

OSE-RPSQ-30-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 12.7
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-12.7-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 25.4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPSQ-25.4-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip
