Reference number: STE-SL5
The SL5 deuterium halogen light source is a miniature deuterium and halogen light source covering the spectral range of 190-1100nm.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description

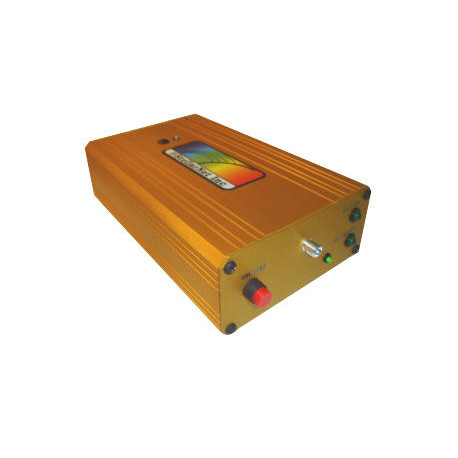

The SL5 Deuterium Tungsten Halogen Light Source- is a miniature Deuterium and halogen light source that covers the 190-900nm range. The lamp combines the Deuterium Spectrum with the Tungsten Halogen spectrum to form a single optical path. The deuterium and halogen lamps can be individually turned on or off and have a front and rear panel shutter control. The SL5-DH lamp connects via fiber optic cable to cuvette holders, dip probes, and flow cells, with the return signal routed to the spectrometer SMA 905 input connector.
200-1100nm Spectral Range - Combines two light sources into one small package with deuterium bulb plus tungsten-halogen bulb in one fiber optic connection.
Miniature Size - Its small size of 1.5 x 2.5 x 6 inch makes it a perfect match for our UVN or EPP2000C UV-VIS spectrometer (as pictured).
Dual Lamps - The deuterium and halogen lamps can be individually turned on/off and have a front panel shutter control button for taking a quick dark spectra reference.
Portablility - The combination of both lamps into one small enclosure saves money and reduces complexity to provide the ultimate UV-VIS light source for portability.
Specifications
| Weight | 1 pound |
| Power consumption | 6 watts |
| Spectral Range | 190 - 2200nm |
| Time to stabilize output | 5 min |
| Power output | 1 watt |
| Bulb coloc temp | 3000K |
| Output to bulb | internal |
| Output regulation | 0.05% |
| External filter acc. | demountable |
| External filter slot | 0.5 inch diameter |
| Spetral attenuation | 450nm dip |
| Connector SMA 905 |
