Reference number: STE-SL1

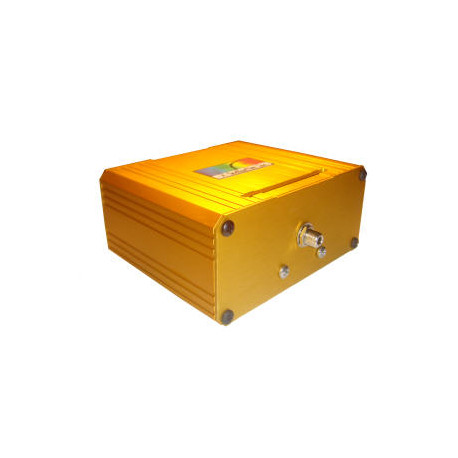

The SL1 Fiber Optic Light Source for VIS - NIR applications allows one sample per fiber to be illuminated.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description
350 nm-2200nm Spectral Range- effective for color, reflectance and absorbance measurements
Extensive Life- The SL1 has a 10,000 hour Tungsten Halogen lamp filled with Krypton gas
Great Compatibility/Versatility- manipulate output with color-enhancing or signal-attenuating filters.
Maximum Flexibility- several models and options to choose from to meet all your application needs
Specifications
| Weight | 0.62 pounds (280 g) |
| Power Consumption | 12 watts |
| Spectral Range | 300 - 2200 nm |
| Time to stabilize output | 1 min |
| Power output | 200 watts |
| Opt. colot temperatur | 2800K |
| Output to bulb | 5VDC |
| Output regulation | 0.2% |
| Int. filter accesory | 2 inch square filter slot |
| External filter slot | SL1 Filter only |
| Bulb life | 10,000 hours |
| Connector | SMA 905 |
