Reference number: STE-Raman-HR-TEC

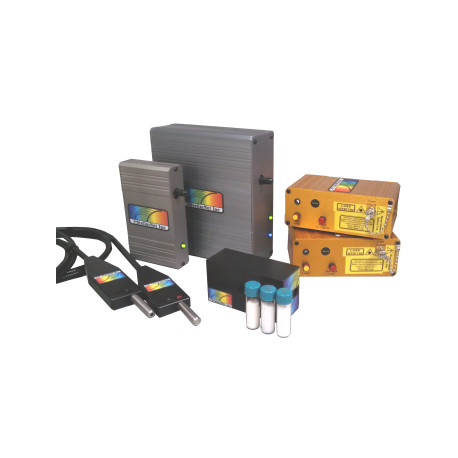

StellarNet´s ruggedized miniature spectrometer for Raman spectroscopy

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

High resolution Raman spectrometer from the Raman series.

Our Raman spectrometers are ruggedized miniature spectrometers configured specifically for Raman spectroscopy applications using 785 nm lasers.


Technical specifications:
  • Spectral range: 200cm-1 - 2200cm-1
  • Resolution of 4cm-1 or 8cm-1
  • Extra low stray light values down to 0.05%
  • Integrated thermoelectric cooler (TEC)
  • SMA fiber input Grating: 1200 lines / mm
  • Detector: CCD array with 2048 pixels
  • SNR: 1000:1
  • Integration time to 60sec
  • Possible custom software development using VB, VC, LabVIEW, Visual Basic
  • Dimensions: 2.5 cm x 7.5 cm x 12.5 cm
  • Weight: 400g

Includes:
  • spectrometer
  • USB2.0 Adapter
  • Free software available as a full version for Windows XP/Vista/7
  • Note: the software under Windows 7, 64 bit will not run!
