Reference number: ADM-SM-Hera

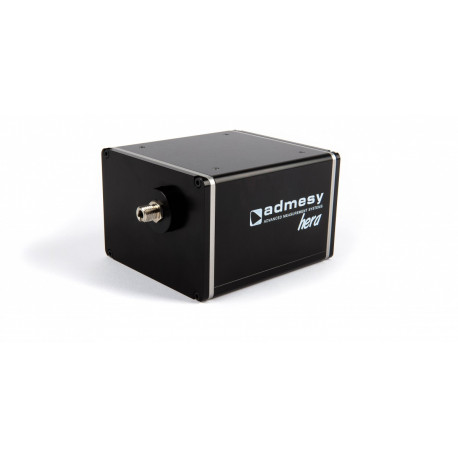

The Hera spectrometer from Admesy provides an accurate UV-VIS spectrometer with auto range function and excellent linearity in a rugged housing of only 95x85x61mm.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description
The Hera spectrometer series is a highly accurate spectrometer with auto range function and excellent linearity in a robust and compact housing. Due to this combination the Hera can be used in a broad range of applications varying from R&D research to non-stop use in production environments. The Hera is available with a fixed (lens or cosine corrector) or fiber optics setup covering all you need to start your measurements. The Hera: stuffed with measurement power!
|
Model |
Hera 01 – VIS |
|
Spectral range |
380 - 780 nm |
|
Optical resolution (FWHM) |
2.3 nm |
|
Order sorting filter |
2nd order sorting filter |
|
Wavelength accuracy |
+/- 0.5 nm |
|
Stray light |
<0.03 % |
|
Luminance accuracy*2 |
+/-4% |
|
Chromaticity accuracy*2 |
+/- 0.002 |
|
Non - Linearity |
< 1% |
|
Integration time |
2.5 ms – 20 s |
|
Spectral resolution |
Selectable 0.5 nm - 1 nm - 2.5 nm - 5 nm - 10 nm |
|
Interfaces |
High speed USB, RS232, Ethernet, Trigger connections |
|
Measurement parameters |
Spectral output, radiometric data or colour data (Lumen, x,y, DWL, PWL, CRI, CCT, etc.) |
|
Data processing time |
14 ms |
|
Size (L x W x H) |
95 x 81 x 61mm (without optical system) |
|
Weight |
650 gram |
|
Operating temperature |
10 - 35 °C |
|
Power consumption |
1250 mW |
|
Luminance range |
0.05 – 6000 cd/m² |
|
Wavelength accuracy |
+/- 0.5 nm |
|
Luminance accuracy (measured at standard illuminant A) |
+/-4% |
|
Colour accuracy (measured at standard illuminant A) |
+/-0.002 |
The Hera spectrometer from Admesy provides an accurate UV-VIS spectrometer with auto range function and excellent linearity in a rugged housing of only 95x85x61mm.
