  • Deep UV Raman Spectrometer
-->

Reference number: PSY-PL200

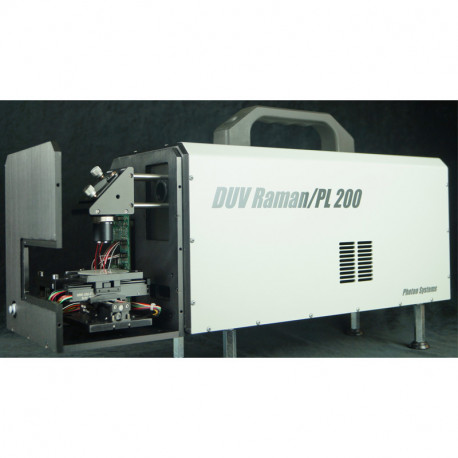

Fully Integrated, Lab Model Deep UV Resonance Raman & Photoluminescence Spectrometer, with microscopic imaging.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

  • Excitation Wavelength: 248.6nm.
  • Polarization: Random (Raman signatures insensitive to polarization of target materials)
  • Spectrograph: 200 mm Czerny Turner with dual computer controlled 3600ln/mm for Raman & 300 or 600 or 1200 ln/mm for fluorescence. All holographic gratings
  • Dispersion: 2.2 cm-1/pixel (w 3600g/mm grating)
  • Resolution: <8 cm-1 with 60 μm slit
  • Entrance Slits: fixed, selectable
  • Spectral Spread:300-3500cm-1 (3600g/mm grating), 250nm to 620 nm (300g/mm grating) (1.2 nm res)
  • Detector: 3 stage TE Cooled (-40C), back thinned,back illuminated UV CCD Array. 2048x128 elements, 12x12 micron pixels
  • Obj. Lens: 5X deep UV achromatic objective standard. 3X, 10X & 20X objectives available
  • Context Imaging Camera: 2.4 M pixel (only with 5X objective)
  • Image FOV: 3.1 x 1.74 mm
  • Sample Stage: 50x50x10mm X-Y-Z manual, std.
  • Motorized Position/Mapping Stage: 50x50 mm X-Y motorized,10mm Z manual,2μm resolution, optional as shown.
  • Size & Weight: 7.0” W x 8.0” H x 24” D, < 25 lb
  • Power Consumption: Standby: 50 W Max power: 100 W
  • Input: 85 VAC to 270 VAC or 24 VDC
  • Safety: Class I, DHHS/CDRH, CE, RoHS
  • Command & Control: External laptop or tablet computer via USB for command, control, data processing, chemometrics, data storage, etc.
